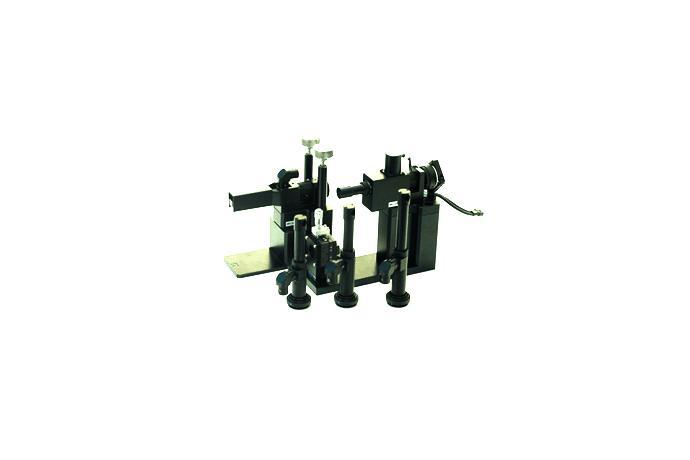

MMVLS80 Series
모델명
MMVLS80 Series
시리즈
렌즈
전체보기
자료
-
구매정보
provider logo
리스광시스템(주)

광학시스템 솔루션 업체, 반도체, LCD, LED, 정렬광학계 등

연락처
043-216-7009
이메일
sales@leesos.com
상품정보에 문제가 있나요?
정보수정 / 삭제요청
코머신은 제품 판매자가 아닙니다.법적고지 및 안내
제조사
리스광시스템(주)[바로가기]
제품 타입
기계
브랜드
-
SKU
47120
제품명
-
모델명
MMVLS80 Series
사이즈
-
중량
-
제품 상세 정보

MMVLS SERIES SPEC

MODEL
(ON/COAXIAL)		 Optical
magnification		 WD
(mm)		 Depth
of field		 Resolution NA Paraxial
Working
F/#		 F.O.V. MOUNT
MMVLS
80D-P2.5-FF		 2.5X 73mm ±0.178
mm		 7.5um 0.045 25.9 H2.5 X V1.9(1/2");
H1.9 x V1.4(1/3")		 C-mount
MMVLS
55.5D-2.5-FF		 2.5X 55.5mm ±0.178
mm		 7.5um 0.045 25.9 H2.5 X V1.9(1/2");
H1.9 x V1.4(1/3")		 C-mount



MMVLS 80 SERIES SPEC

MODEL
(ON/COAXIAL)		 Optical
magnification		 WD
(mm)		 Depth
of field		 Resolution NA Paraxial
Working
F/#		 F.O.V. MOUNT
MMVLS
80D-2.0X		 2.0X 82.0mm ±0.222
mm		 7.5um 0.045 21.5 H3.2 X V2.3(1/2");
H2.4 x V1.8(1/3")		 C-mount
MMVLS
80D -2.5X		 2.5X 82.0mm ±0.178
mm		 7.5um 0.045 25.9 H2.5 X V1.9(1/2");
H1.9 x V1.4(1/3")		 C-mount
MMVLS
80D-3.0X		 3.0X 82.0mm ±0.148
mm		 7.5um 0.045 33 H2.1 X V1.6(1/2");
H1.6 x V1.2(1/3")		 C-mount



MMVLS 80 SERIES SPEC

MODEL
(ON/COAXIAL)		 Optical
magnification		 WD
(mm)		 Depth
of field		 Resolution NA Paraxial
Working
F/#		 F.O.V. MOUNT
MMVLS
80-2.0X		 2.0X 82.0mm ±0.222
mm		 7.5um 0.045 21.5 H3.2 X V2.3(1/2");
H2.4 x V1.8(1/3")		 C-mount
MMVLS
80-2.5X		 2.5X 82.0mm ±0.178
mm		 7.5um 0.045 25.9 H2.5 X V1.9(1/2");
H1.9 x V1.4(1/3")		 C-mount
MMVLS
80-3.0X		 3.0X 82.0mm ±0.148
mm		 7.5um 0.045 33 H2.1 X V1.6(1/2");
H1.6 x V1.2(1/3")		 C-mount
