대형 Beveling Machine

모델명

시리즈

Beveling Machine


구매 안내

아래는 참고용 정보이므로 세부 조건은 반드시 제조사/판매자에게 문의 바랍니다.

결제 방법

제조사/판매자에게 문의 바랍니다.

납기 정보

제조사/판매자에게 문의 바랍니다.

배송 정보

제조사/판매자에게 문의 바랍니다.

원산지

제조사/판매자에게 문의 바랍니다.


053-582-0650

제품 상세 설명

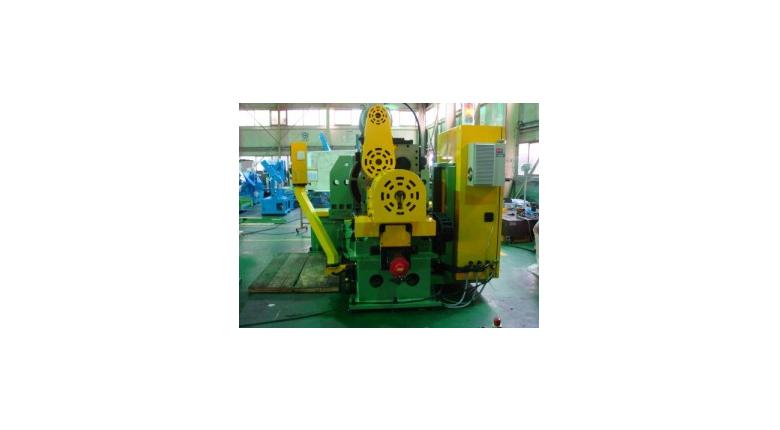

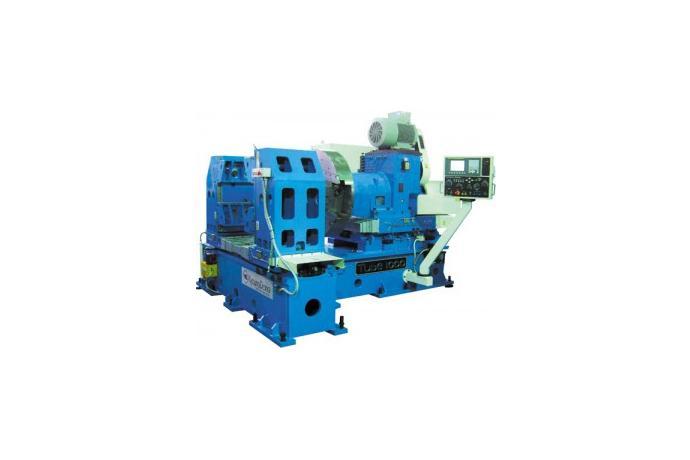

Pipe-end Facing Machine

•KYOUNG DONG's Facing Machine is an all-purpose facing machine of cross-head type endowed with modernity developed by rich ideas and excellent technology.

•A wide range of workings can be made including pipe and tube ends, pipe outside diameter surfaces, joint flange surfaces, etc. and preparation and centering are very easy because the facing head is freely movable to fit the part of the material to be worked.

•It can also store a programmed configuration so as to make it easy to be operated by a novice.

•파이프의 끝면, 카플링 후렌지면 등을 절삭할 수 있도록 공구가 부착된 특수기계로, 중심잡기가 아주 편리하며 길이가 길거나 구부러진 파이프도 절삭이 가능하며, 두께가 두꺼운 소재도 가능하다.

•또한 여러가지 가공 형상을 프로그램화하여 입력해둘 수 있으므로 초보자도 쉽게 사용할 수 있다.

DESCRIPTION

UNIT

Tube 1000

Cutting Diameter

400~1020

Cutting thickness

100

Face Plate Dia

1020

Spindle R.P.M

r.p.m

0~50

Main Motor

22

X-axis Motor(Servo)

2.2

Z-axis Motor(Servo)

3.5

X-axis Distance

±90

X-axis Speed

m/min

0.5

Z-axis Distance

200

Z-axis Speed

m/min

1.5

Oil Mist





Tank Capacity

1.5

Power Source

V



Control Source

V

220

DIMENSION

Length

2850

Width

2440

Height

2150

Centering Height

1250

Net weight

10000
