Network Processor Platforms
모델명
시리즈

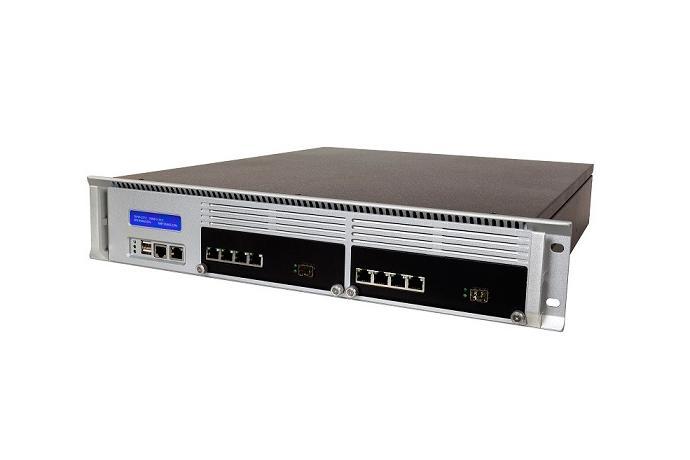

Network Security Appliance Server
구매 안내
아래는 참고용 정보이므로 세부 조건은 반드시 제조사/판매자에게 문의 바랍니다.
결제 방법
제조사/판매자에게 문의 바랍니다.
납기 정보
제조사/판매자에게 문의 바랍니다.
배송 정보
제조사/판매자에게 문의 바랍니다.
원산지
대한민국
제품 상세 설명
Specification
Form factor
Dimensions 2U Rackmount, 430x88x500mm(WxHxD)
Weight 14kg
Platform
Processor OCTEON II CN68xx 32 core MIPS64 Processor
System Memory
Memory Type DDR3 1066/1333MHz 8 slot
Memory Capacity UP to 128GB DDR3 Memory
Network interface
1x Copper GbE
Storage
Storage Interface 2x SATA II HDD(module type option)
CF 1x Compact Flash
Peripheral
USB 2x USB 2.0 Port
Serial 1x Console Port(RJ45 Type)
Expansion & Option Card
4 port Fiber GbE Card w/2 pair bypass or w/o bypass
2 port 10G Card w/1 pair bypass
1 port 10G Card w/o bypass
4 port 10G Switch Card (w/o SFP+module)
Display
LEDs Power LED, HDD LED, Status LED
Module LCD(2x16 Characters)
Power
Watt 300W (1+1) Redundant Power Supply
Input 100V~240V AC, 47~63MHz auto range
Environmental Parameters
Temperature Operating 0~40℃, Storage -20~75℃
Humidity(RH) 5~85%
