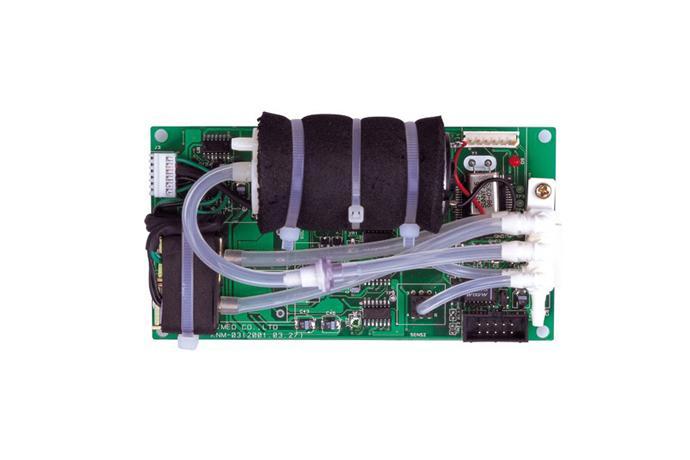

KNM-05
 NIBP Module

ㆍ Dimension : applied front page
                     68×128×32mm(Width ×Length ×Height)
ㆍ Weight : approximately 180g
ㆍ Supply Power Voltage : DC 7Volt ±10%, 500mA
ㆍ Consumption Power : 3.2 Watt at Operating Motor
                                   0.35 Watt at Standby
ㆍ Measuring Range : 50 ∼ 280mmHg Systolic, Diastolic and Mean
                               30 ∼ 300bpm Pulse Rate
ㆍ Measuring Mode : Adult/Neonate
                               Manual/Automatic
ㆍ Protection : Double Overpressure Protection(Meet IEC Regulation)
                    Overpressure 300mmHg + 20mmHg at Adult Mode
                    150mmHg + 15mmHg at Neonate Mode
                    Hardware Protection - Use of 2 Pressure Sensor
                    Use of 2 Solenoid Valve
                    Source·Sink Driver
                    Software Protection
                        - Detect Measuring Over Time
                        - Detect Malfunction of Controller
ㆍ Manometer Mode : 0 ∼ 300mmHg ±3mmHg
ㆍ Operating Temperature : 0 to +50 ℃
ㆍ Operating Humidity : 10% ∼ 95% (noncondensing)
ㆍ Storage Temperature : -20℃ to 60 ℃
ㆍ Measuring Method : Oscilometric

 KBC-B04
 ECG Module

  ECG
 ㆍCMRR (Common Mode Rejection Ratio) : ≥60dB
 ㆍ Input Impedance ≥10MΩ
 ㆍ ECG Channel 1 or 2
 ㆍ Electrodes 3 wires : RA, LA, LL
                                5 wires : RA, LA, LL, RL, V1(Chest)
 ㆍ Leads Select 3 Leads : I, II, III
                                    7 Leads : I, II, III, aVR, aVL, aVF, V1
 ㆍ Frequency Bandwidth 0.5~40Hz(at Filter )
 ㆍ Gain Selection 0.5, 1, 2, 4 mV/cm
 ㆍ Heart Rate Pulse Range 30~300 bpm
 ㆍ QRS Indication Available
 ㆍ Heart Rate Accuracy ±1bpm or 2%
 ㆍ Isolation Breakdown Voltage >4000V AC 60 Sec 60Hz
 ㆍ Patient Leakage Current ≤100uA
 ㆍ Notch Filter 50/60 Hz
 ㆍ Defibrillator / ESIS Protected

 Respiration
 ㆍ Excitation Current < 500uA
 ㆍ Excitation Frequency 50kHz
 ㆍ Measuring Method Thoracic Impedance Detection between RA and LA of ECG Electrode
 ㆍ Measuring Range 2~99 bpm
 ㆍ Accuracy ±1bpm or 2%
 ㆍ Sensitivity 0.2~4Ω/cm

Temperature
 ㆍ Measuring Range 15.0~45.0℃
 ㆍ Probe Compatible YSI probe and Exacon
 ㆍ Scale Celsius Degrees
 ㆍ Accuracy ±0.1℃

 Power
 ㆍ Direct Current Voltage 6.5~8.0V
 ㆍ Consumption Current Maximum 190mA at 7.5V

 ㆍ Dimension 120ⅹ68ⅹ16mm(WⅹDⅹH)
