Burnishing Tool for Radius, Angle and Steplike Surfaces

모델명

시리즈

Diamond Burnishing Tools


구매 안내

아래는 참고용 정보이므로 세부 조건은 반드시 제조사/판매자에게 문의 바랍니다.

결제 방법

제조사/판매자에게 문의 바랍니다.

납기 정보

제조사/판매자에게 문의 바랍니다.

배송 정보

제조사/판매자에게 문의 바랍니다.

원산지

러시아


+7-906-8846097

제품 상세 설명

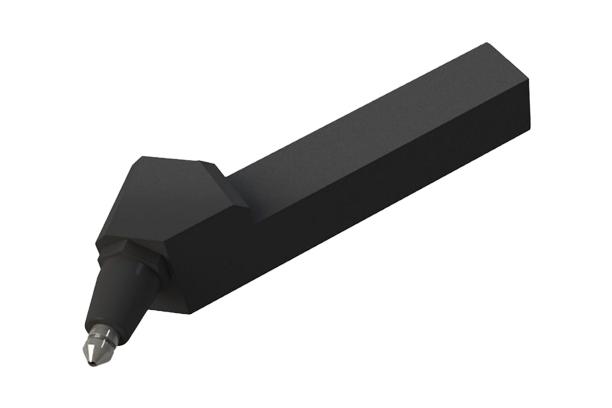

Sensor-Tool ST7-25 diamond burnishing tools

USED FOR BURNISHING RADII AND ANGLE, STEPLIKE SHAFTS BURNISHING TOOL



Supplied in 2 versions



ST7-25L   for processing parts  in direction from rear center towards the chuck

ST7-25R   for processing parts  in direction from the chuck  towards rear center

Used for finishing surface treatment of parts
The shape of the part is a cylinder, bodies of rotation
The diameter of the workpiece starting from 8 mm and higher

Metric square toolholders  20x20, 25x25 (as well as the size of the customer)

Inch toolholders   0.625"x0.625"   0.750"x0,750"   1.00"x1.00"


Natural diamond (ND)
The tool is used for finishing, finishing and strengthening and nanostructuring smoothing
Migration to other technical processes is possible only in a dynamometric device which is purchased separately.

The tool completely replaces the grinding and polishing area. High-precision diamond tools.
At finishing and finishing-hardening processing, smoothing of roughness is provided up to Ra = 0.2 ... 0.05 micron;

with nanostructuring treatment - up to Ra = 0.32 ... 0.12 microns.
Hardening of the surface layer is provided 1.3 ... 2 times relative to the initial state.

It is used on CNC machines and universal machines capable of finishing turning.
Comes with a remote cooling module. The module is characterized by zero coolant flow.
Does not have the ability to install from the tool shop !!!
Example of parts - hydraulic cylinder rods, valve spindles, heels of submersible pumps, shafts, sleeves, bearings, bushings, crankshafts, valves.

High-precision diamond tools. Metal burnishing.



lower processing costs
lower processing costs
reduction of processing costs
cost reduction for Metalworking
cost-cutting tools
cost-cutting tool
chipless processing
Metal processing without chip removal
cut back on metalworking costs
auxiliary time reduction
Reducing production costs
metalworking quality improvement
stress relief
Reducing production costs
lower direct costs for cutting tools
lower direct costs for grinding and polishing
Reduced set-up time
Reduced set-up time
cold working without chip removal
economy of scale
operational excellence





The quality of chrome plating can be improved by diamond smoothing its surface. This treatment compacts the surface layer and eliminates the tightness of tight joints of chrome-plated parts due to the presence of microcracks in chrome.
