Outline

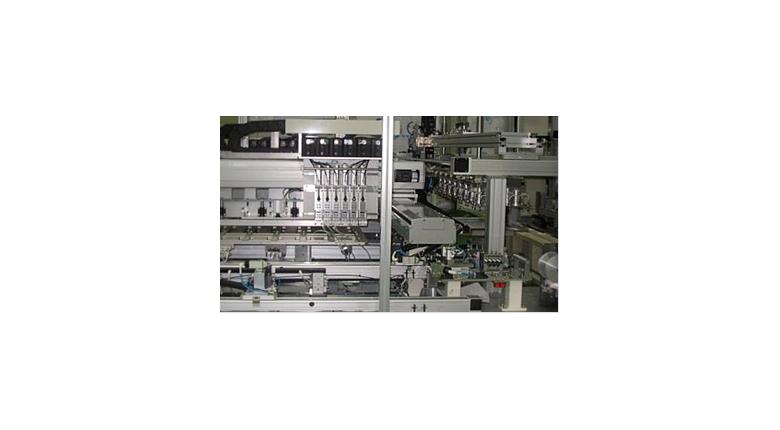

Layup: Tabbing 후 리본을 정해진 길이로 절단하고 Jig Pallet 상부에 “+,-“로 정렬하는 장비이다.

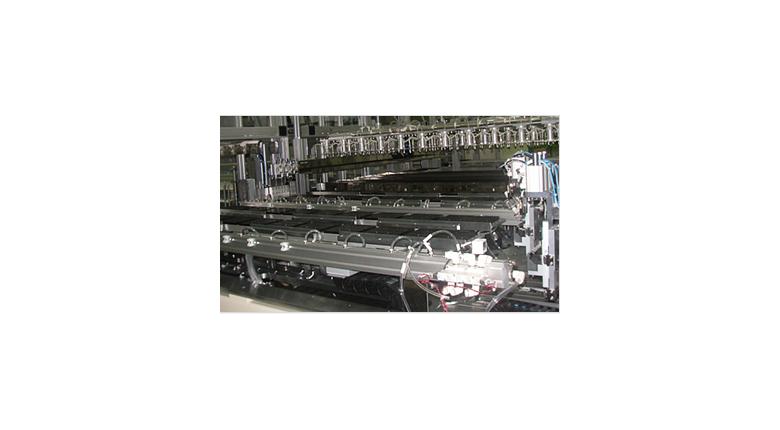

Bussing: String의 전극에 Bus Bar를 절단 후 공급하고 자동으로 납땜하는 장비이다.

Specification

Capacity

Wafer 6” 6P*10Cell , 360 String/1Hr Tact Time = 60Sec

LayUP

Traverse [Taber에서 Stringing Cell Moving]

Transfer-1 [Alignment / Buffer Stage에 Loading]

Transfer-2 [Edge Ribbon Cut Stage에 Loading]

Buffer 4 Station

Stringing Alignment

Edge Ribbon Adjust Cutter

String to String Pitch : 2±0.5mm, 3±0.5mm

Bussing

Transfer-1 [Load to Jig Pallet]

Transfer-2 [Load to Glass EVA Sheet]

Bushing Jig Pallet

Pallet Return Equipment

Straight Ribbon Bushing Equipment

Angle Ribbon Bushing Equipment

Bus Bar Straight: (after cutting)_R/L ±0.2mm

Bus Bar 90˚ Disposition ±0.5˚

Soldering Cross area Over 80% (Peel test ]
