  • (주)진우엔지니어링

    Tabber&Stringer
    모델
    -
    시리즈
    Solar

    제품 소개

    Outline

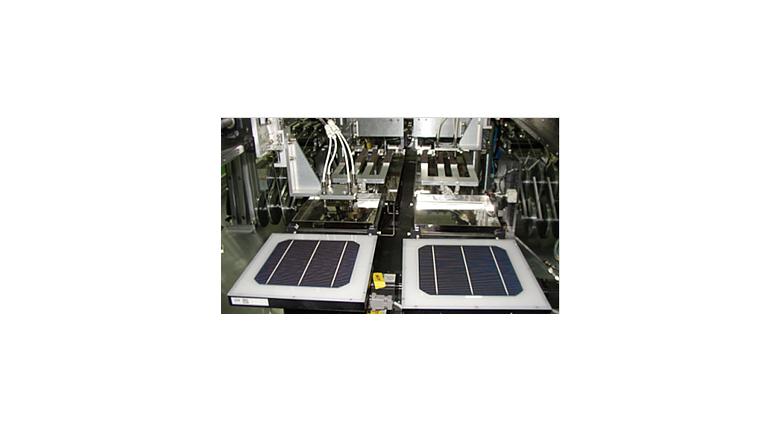

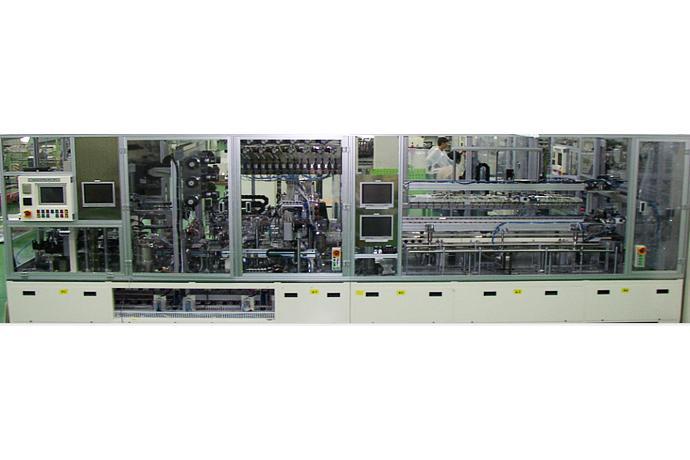

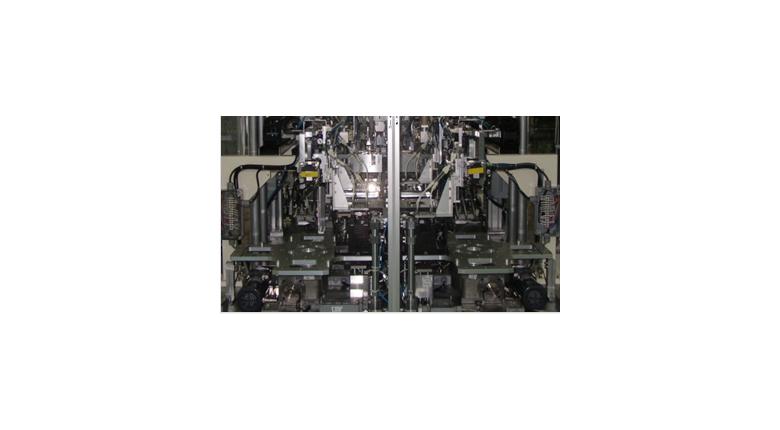

    본 설비는 Cell과 Ribbon을 투입하여, 정렬 및 Hot air soldering 공정 등을 수행하여 직렬로 연결된 String을 생산하는 설비이다.

    Specification

    Cell size

    156.1*156.1mm, (2 or 3 bus-bar)

    Cell thickness, Cell bowing

    200+_20µm, Less than 2mm

    Maximum string length

    1900mm, Ribbon edge:15~30mm

    Distance of cells

    ~3mm adjustable

    Ribbon Width

    For 6” cells:1.5mm, 2.0mm, 2.5mm

    Number of ribbon per cell

    Two(2) or three(3) bus bar 6 inch cells

    Throughput

    Up to 600cells/hour with the following materials;

    Cell magazine loader

    Four(4) cell loading magazines on the loading indexes

    Alignment

    Visual camera for cell alignment and inspection of chip around the edge of the cell

    Flux spray

    Non contact flux spray nozzle applicator

    Ribbon Applicator

    Spool, Stretching, Cutting, Stress-Release form Transfer

    Soldering

    1. Preheating
    2. Soldering
    Top and bottom side of the cells soldered at the same time Hot air soldering unit Holding ribbons on the cell with pins

    String conveyor

    Total Five(5) stainless steel belts

    Operation

    PLC & Touch Panel

    Utilities

    AC 220V, 3phase, 60Hz
    Dried compressed air Volume 5-6kg/cm

    Room condition

    Temperature: 25℃±5℃, Humidity: 40-50%

    Flow direction

    Left to Right or Right to Left
