Solventless Laminating Machine

모델명

시리즈

Laminating Machine


구매 안내

아래는 참고용 정보이므로 세부 조건은 반드시 제조사/판매자에게 문의 바랍니다.

결제 방법

제조사/판매자에게 문의 바랍니다.

납기 정보

제조사/판매자에게 문의 바랍니다.

배송 정보

제조사/판매자에게 문의 바랍니다.

원산지

제조사/판매자에게 문의 바랍니다.


031-319-2755

제품 상세 설명

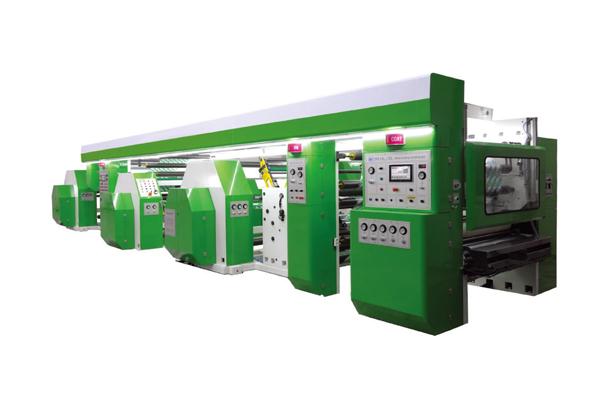

Solventless Laminating Machine

The most optimized and cost effective Dry Laminating Machine provides the outstanding performance in lamination, processing a wide range of web materials with varied flexible substrates.

Machine Speed upto 400m/min
Working Speed 350m/min



Coating Unit

Control Unit

Mixing and Pumping System

Winding Unit



MODEL : ILC – NSL Series



CONSISTING OF

1. 1st Unwinding & Auto Splicing Unit (With EPC Unit) : 1 set

2. Infeeding Unit : 1 set

3. Coating Unit : 1 set

4. Laminating Unit : 1 set

5. 2nd Unwinding & Auto Splicing Unit (With EPC Unit) : 1 set

6. Outfeeding Unit : 1 set

7. Rewinding & Auto Splicing Unit : 1 set

8. Metering System : 1 Set (European, American or Japanese Maker)

9. Operating Panel/Main Control Cabinet : 1 lot





MAJOR SPECIFICATION

1. Type : Solventless (Solvent Free)

2. Web
a) OPP Film : 20 ~ 60 microns
b) CPP Film : 25 ~ 60 microns
d) Polyester : 12 ~ 30 microns
e) O – Nylon : 15 ~ 25 microns
f) AL-Foil : 6.5 microns(2nd Unwinder)
g) Paper : 30 ~ 80gsm

3. Web Width: 600~1500mm

4. Machine Speed : Max. 400 m/min

5. Working Speed : Max. 350 m/min

6. Guide Roll Width: Max.1,600mm

7. Winding Diameter : Max. ø1,000 mm

* Specification can be adjustable depends on customer’s requirements



INT’s Technology in precision Web Tension Control, flawless lamination and accurate & efficient adhesive metering system at any speed of the machine, optimizes the production output.

This environmental friendly machine guarantees the great quality and reliability for every customers.
