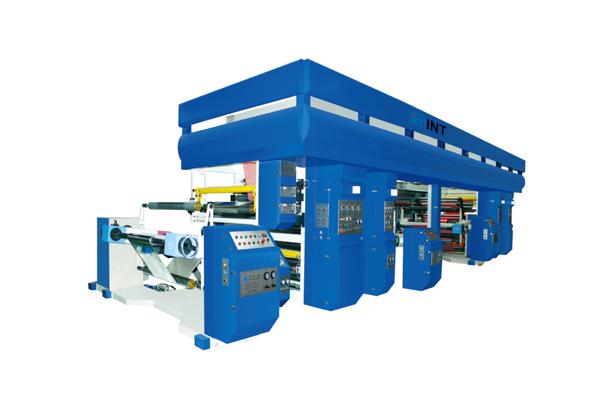

Dry Laminating Machine

The most optimized and cost effective Dry Laminating Machine provides the outstanding performance in lamination, processing a wide range of web materials with varied flexible substrates.

Machine Speed upto 300m/min
Working Speed 250m/min





MODEL : ILC – DL Series



CONSISTING OF

1. 1st Unwinding Unit : 1 set

2. Infeeding Unit : 1 set

3. Coating Unit : 1 set

4. Dryer & Heat Exchange Unit : 4 zone

5. Laminating Unit : 1 set

6. 2nd Unwinding Unit : 1 set

7. Rewinding Unit : 1 set

8. Operating Panel/Main Control Cabinet : 1 lot





MAJOR SPECIFICATION

1. Type : Solvent base, Dry Lamination

2. Web
a) OPP Film : 20 ~ 60 microns
b) CPP Film : 25 ~ 60 microns
d) Polyester : 12 ~ 30 microns
e) O – Nylon : 15 ~ 25 microns
f) AL-Foil : 6.5 microns(2nd Unwinder)
g) Paper : 30 ~ 80gsm

3. Web Width: 600~1,500mm

4. Machine Speed: Max 300/min

5. Working Speed: Max 250m/min

6. Guide Roll Width: Max. 1,600mm

7. Winding Diameter : Max. ø800 mm

* Specification can be adjustable depends on customer’s requirements



Multi Technology Dry Laminator provides the most advanced technical solution, which maximize the product quality and machine productivity for Flexible Packaging Industry.
With the most advanced Web Tension Control System, it maintains the extremely low tolerance for a wide range of flexible substrates with different properties and thickness.
Hence, the machine can process different materials combination such as Plastic Film, Aluminum Foil and Paper.
