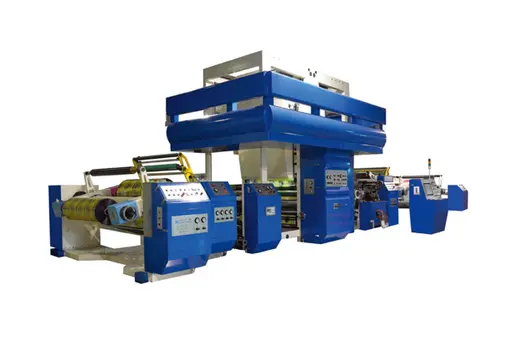

Single Extrusion Laminating Machine
INT is specialized in the design and manufacture of Single Extrusion Coating and Laminating Machine. We deliver the most optimized machine with innovative technology for all packaging Industry.
Machine Speed upto 250m/min
Working Speed 200m/min
|
Main Control Panel |
Extruder Unit |
T-DIE (CLOREN, USA) |
Winding Unit |
MODEL: ILC-EL-CO Series
CONSISTING OF
1. Unwinding & Auto Splicing Unit (With EPC Unit) : 1 set
2. Infeeding Unit : 1 set
3. Anchor Coating Unit : 1 set
4. Dryer & Heat Exchange Unit : 1 set
5. Extrusion Die (CLOREN – USA / EDI – USA / JYHOKU – Japan)
6. Extruder (Ø100mm) : 1 set
7. Laminating Unit : 1 set
8. Sandwich Winding & Auto Splicing Unit : 1 set
9. Powder Spray Unit : 1 set
10. Rewinding & Auto Splicing Unit : 1 set
11. Operating Panel/Main Control Cabinet : 1 lot
MAJOR SPECIFICATION
1. Web
a) OPP Film : 20 ~ 60 microns
b) CPP Film : 20 ~ 60 microns
d) Polyester : 12 ~ 25 microns
e) O – Nylon : 15 ~ 25 microns
f) AL-Foil : 6 ~ 40 microns
g) Paper : 20 ~ 80gsm
h) Metalized Film : 10 ~ 30 microns
i) RESIN : LDPE, PP, EVA, EAA
2. Web Width: Max. 1,500mm
3. Machine Speed : Max. 250 m/min
4. Working Speed : Max. 200 m/min
5. Guide Roll Width: Max. 1,600mm
6. Winding Diameter : Max. ø800 mm
7. Sandwich Winding Diameter : Max. ø600 mm
* Specification can be adjustable depends on customer’s requirements
Signle Extrusion Coating and Laminating machines are usually customized and configured for variety of applications. INT’s Extrusion Laminating Machine is fully integrated, process a wide range of different materials such as Film, Aluminum Foil, Paper and Board.
