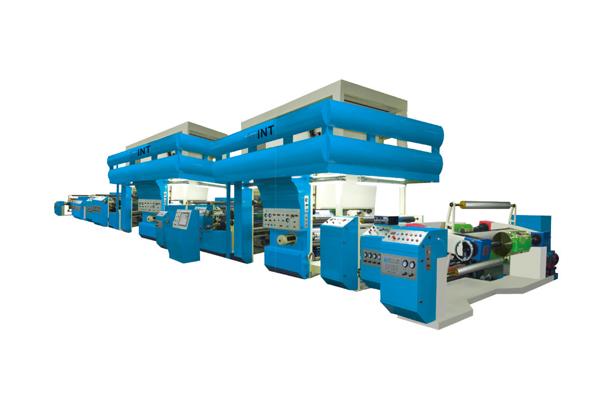

Tandem Extrusion Laminating Machine

INT is specialized in the design and manufacture of Tandem Extrusion Coating and Laminating Machine. We deliver the most optimized machine with innovative technology for all packaging Industries.

Machine Speed up to 250m/min
Working Speed 200m/min







EXTRUDER UNIT

MAIN CONTROL PANEL

T-DIE (CLOREN, USA)

WINDING UNIT



MODEL: ILC-TEL Series



CONSISTING OF

1. Unwinding & Auto Splicing Unit (With EPC Unit) : 1 set

2. Infeeding Unit : 1 set

3. Anchor Coating Unit : 2 set

4. Dryer & Heat Exchange Unit : 2 set

5. Extrusion Die (CLOREN – USA / EDI – USA / JYHOKU – Japan)

6. Extruder (Ø100mm) & T-Die Unit : 2 set (T-die: 1 Automatic / 1 Manual)

7. Automatic Thickness Gauge (NDC – USA)

8. Laminating Unit : 2 set

9. Sandwich Winding & Auto Splicing Unit : 2 set

10. Powder Spray Unit : 1 set

11. Rewinding & Auto Splicing Unit : 1 set

12. Operating Panel/Main Control Cabinet : 1 lot





MAJOR SPECIFICATION

1. Web

a) OPP Film : 20 ~ 60 microns
b) CPP Film : 20 ~ 60 microns
d) Polyester : 12 ~ 25 microns
e) O – Nylon : 15 ~ 25 microns
f) AL-Foil : 6 ~ 40 microns
g) Paper : 20 ~ 80gsm
h) Metalized Film : 10 ~ 30 microns
i) RESIN : LDPE, PP, EVA, EAA

2. Web Width: Max 1,500mm

3. Machine Speed : Max. 250 m/min

4. Working Speed : Max. 200 m/min

5. Guide Roll Width: Max 1,600mm\

6. Winding Diameter : Max. ø800 mm

7. Sandwich Winding Diameter : Max. ø600 mm

* Specification can be adjustable depends on customer’s requirements



Tandem Extrusion Coating and Laminating machines are usually customized and configured for variety of applications. INT’s Extrusion Laminating Machine is fully integrated, process a wide range of different materials such as Film, Aluminum Foil, Paper and Board.
