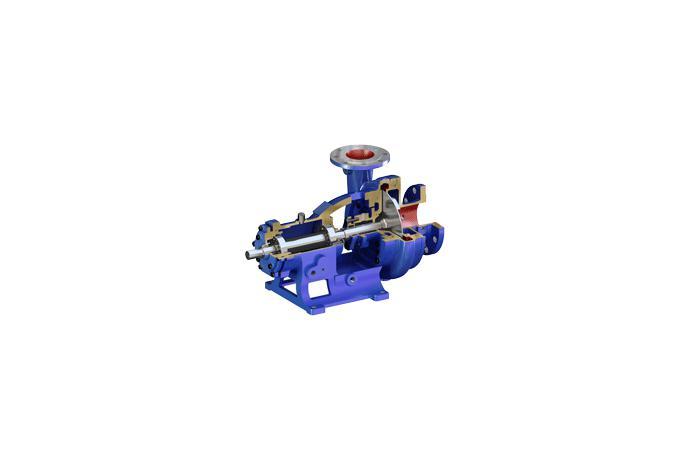

|시리즈||Overhung Type Pump|
- Paper and pulp transport
- Application of labyrinth seal to prevent bearing oil leakage and shaft wear
- The gap between the rotor and the front lateral plate can be adjusted from the outside without disassembling of the pump, and it is easy to replace the rotor.
- The stuffing box can be disconnected from the casing, and is easily compatible with any shaft seal
- The casing is supported by a bracket support, which delivers less noise and more stable operation than foot support.
- Capacities : To 900 ㎥/hr
- Heads : To 85 m
- Design pressures : 7 ~ 13kgf/㎠
- Impeller type : Open
- Temperature range : 0 ~ 95℃
