HORIBA
EMCCD Camera
모델명
시리즈
OEM Deep-Cooled Scientific Cameras
구매 안내
아래는 참고용 정보이므로 세부 조건은 반드시 제조사/판매자에게 문의 바랍니다.
결제 방법
제조사/판매자에게 문의 바랍니다.
납기 정보
제조사/판매자에게 문의 바랍니다.
배송 정보
제조사/판매자에게 문의 바랍니다.
원산지
제조사/판매자에게 문의 바랍니다.
제품 상세 설명

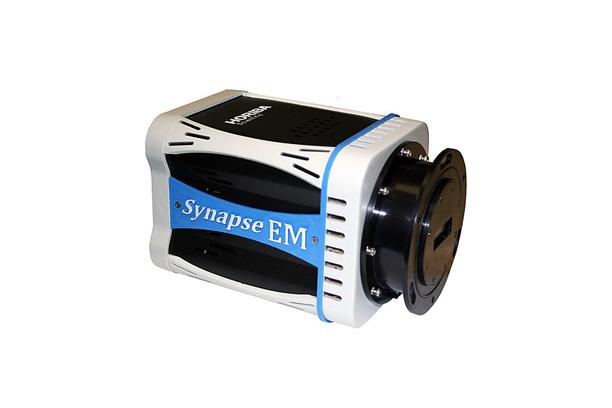

UV-VIS-NIR EMCCDs Camera
EMCCD Camera for OEM Industrial Applications
Key Applications :
ㆍ Raman spectroscopy
ㆍ SERS, TERS
ㆍ Multi-track spectroscopy
ㆍ Transient spectroscopy
ㆍ Single-molecule spectroscopy
Key Features and Benefits
ㆍ 1600 × 200 or 1600 × 400 EMCCD sensor - 16 × 16 μm pixel size for high spectral resolution
ㆍ 25.6 × 3.2 mm or 25.6 × 6.4 mm image area - Ideal for high-speed or multi-track spectroscopy
ㆍ Back- and front-illuminated - BIQX Technology with enhanced QE below 450 nm
ㆍ Deep thermoelectric cooling - Air or liquid circulation to minimize dark current
ㆍ Dual readout modes - EMCCD or CCD for a broad range of light conditions
ㆍ Readout rates up to 3 MHz - Acquires more than 1600 spectra per second
ㆍ Single fused-silica vacuum window - Minimizes reflection losses from UV to near-IR
| Sensor | Front-illuminated (FI), back-illuminated (BI), scientific grade 1 | |
| Active pixels | 1600 × 200 | 1600 × 400 |
| Pixel size | 16 μm × 16 μm | |
| Image area | 25.6 mm × 3.2 mm | 25.6 mm × 6.4 mm |
| Output node well capacity High Sensitivity mode Electron Multiplying mode |
300,000 e— 1,300,000 e— |
|
| Register Well Depth High Sensitivity mode Electron Multiplying mode |
450,000 e— 800,000 e— |
|
| Non-linearity (measured at all speeds per camera) |
< 0.75% | |
| Readout Noise (e—): Typ. (Max) High Sensitivity mode: EM off Electron Multiplying mode: EM off Electron Multiplying mode: EM on |
50 kHz 1 MHz 3 MHz 2.7 (5) 6.1 (9) 8.5 (12) 8.0 (15) 23 (35) 38 (50) < 1 < 1 < 1 |
|
| Dark Current at —60°C (e—/pixel/s) FI BI |
< 0.002 < 0.01 |
|
| Maximum spectra per second Full vertical bin ROI mode 20 rows ROI mode 8 rows |
616 1475 1613 |
376 1475 1613 |
| Software-adjustable gain (e—/count) High Sensitivity mode Electron Multiplying mode |
Selectable from 0.6 to 4.0 Selectable from 3.6 to 25 |
|
| Electron multiplier gain | 1 to 1000, software-controlled | |
| Digitization | 16-bit ADC | |
| Vertical shift rates | 4.9, 9.6, 19 software-selectable(4) | |
| Cooling at +20°C Air-cooled Liquid-cooling recirculator |
—60°C (guaranteed) —75°C (typical) |
|
| Power requirements AC-DC power supply (provided) |
AC input 90–264 VAC, 47–63 Hz DC output +9 V, 6.44 A maximum |
|
(1) Region Of Interest (ROI) mode 8 rows
(2) Measured at -60°C
(3) Measured at all read-out speeds for each camera
(4) Some decrease in CTE may be observed at faster speeds.
