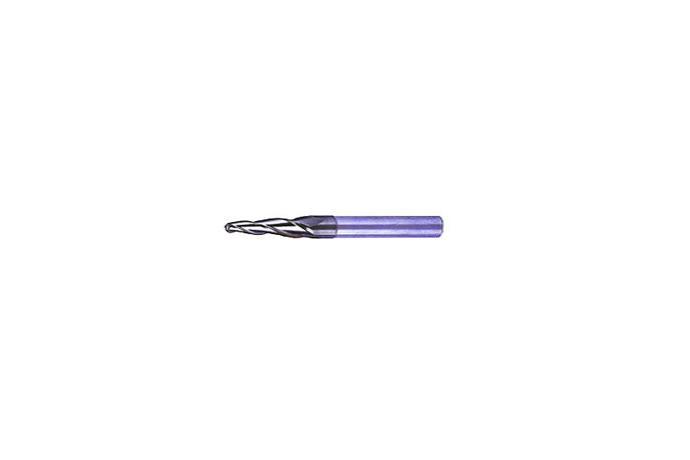

TE503 ○○○○○ series(Solid Type)
|
CODE
|
DIMENSIONS(mm)
|
|
D
|
R
|
θ
|
F.L
|
OAL.
|
SH.Dia
|
|
HTBE 2030
|
3
|
1.5
|
3˚
|
12
|
60
|
6
|
|
HTBE 2040
|
4
|
2.0
|
3˚
|
15
|
60
|
6
|
|
HTBE 2050
|
5
|
2.5
|
3˚
|
18
|
60
|
8
|
|
HTBE 2060
|
6
|
3.0
|
3˚
|
22
|
70
|
10
|
|
HTBE 3080
|
8
|
4.0
|
3˚
|
26
|
75
|
12
|
|
HTBE 3100
|
10
|
5.0
|
3˚
|
19
|
75
|
12
|
|
HTBE 3120
|
12
|
6.0
|
3˚
|
36
|
90
|
16
|
|
HTBE 2030
|
3
|
1.5
|
5˚
|
12
|
60
|
6
|
|
HTBE 2040
|
4
|
2.0
|
5˚
|
15
|
60
|
8
|
|
HTBE 2050
|
5
|
2.5
|
5˚
|
18
|
70
|
10
|
|
HTBE 2060
|
6
|
3.0
|
5˚
|
22
|
70
|
10
|
|
HTBE 3080
|
8
|
4.0
|
5˚
|
26
|
75
|
12
|
|
HTBE 3100
|
10
|
5.0
|
5˚
|
30
|
90
|
16
|
|
HTBE 3120
|
12
|
6.0
|
5˚
|
36
|
100
|
20
|
|
HTBE 2030
|
3
|
1.5
|
7˚
|
12
|
60
|
6
|
|
HTBE 2040
|
4
|
2.0
|
7˚
|
15
|
60
|
8
|
|
HTBE 2050
|
5
|
2.5
|
7˚
|
18
|
70
|
10
|
|
HTBE 2060
|
6
|
3.0
|
7˚
|
22
|
75
|
12
|
|
HTBE 3080
|
8
|
4.0
|
7˚
|
26
|
90
|
16
|
|
HTBE 3100
|
10
|
5.0
|
7˚
|
30
|
90
|
16
|
|
HTBE 3120
|
12
|
6.0
|
7˚
|
36
|
100
|
20
|
