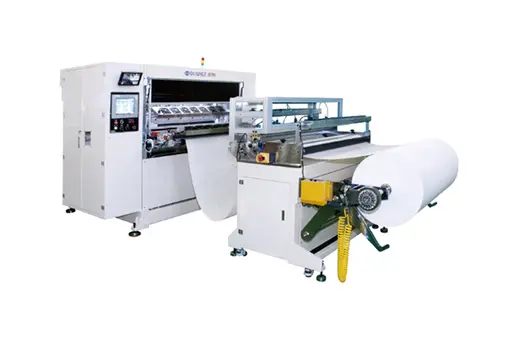

제품명 HEPA PLEATING MACHINE (FINGER TYPE)
모델명
시리즈 HEPA PLEATING MACHINE
카탈로그 catalog-doublewin-HEPA PLEATING MACHINE (FINGER TYPE).pdf
제품소개

GLASS FIBER Media를 절곡하는 설비로,  핫멜트 시스템이 설치되어 있어 다양한 핫멜트 분사가 지원되는 절곡기입니다.

SPECDBWH-W700NFDBWH-W800NFDBWH-W1000NFDBWF-W1300NFDBWH-W1600NF
MAX. PRODUCTION CAPACITY20M/MIN20M/MIN20M/MIN20M/MIN20M/MIN
MAX. WIDTH OF MEDIA650MM750MM950MM1,250MM1,550MM
WORKING PLEAT HEIGHT20~100MM: STANDARD
100~300MM: FINGER
20~100MM: STANDARD
100~300MM: FINGER
20~100MM: STANDARD
100~200MM: FINGER
20~100MM: STANDARD
100~200MM: FINGER
20~100MM: STANDARD
100~200MM: FINGER
MAIN DRIVE MOTOR1.5KW*3P1.5KW*3P1.5KW*3P1.5KW*3P1.5KW*3P
AC SERVO MOTOR220V*1.2KW*3P220V*1.2KW*3P
220V*1.2KW*3P
220V*1.2KW*3P
220V*1.2KW*3P
HOT MELT TANK60KG*2UNITS60KG*2UNITS
60KG*2UNITS
60KG*2UNITS
60KG*2UNITS
HOT MELT ADHESIVE GUN26SETS *2LINES= 52NOZZLES30SETS *2LINES= 60NOZZLES
38SETS *2LINES= 76NOZZLES
50SETS *2LINES= 100NOZZLES
62SETS *2LINES= 124NOZZLES
FEATURE
  • Touch Screen & PLC Controller (Multilingual Support)
  • Media Feeding Speed Controlled by Inverter
  • Servo System
  • Automatic Height Adjustment
  • Media Holding by 3 inch air shaft
  • Media Tension Controlled by Powder Brake System
  • Air Cylinder Type of Cutter Assembly
  • Working Media: Glass Fiber (ULPA, HEPA, and Medium)
  • Pitch of Hot Melt Adhesive Nozzle: 25.0mm (1inch <25.4mm> is optional.)
  • 5 different dispensing pattern
  • Air Cooling Pressure controlled by Inverter System
  • Teflon-coated Roller
  • Safety Guard System on doors
  • 20~100mm : normal pleating without finger
