제품명 Elbow (Elbows long radius 10 / 14 BAR)
모델명
시리즈 Butt Weld Fittings
카탈로그
제품소개

Elbows long radius 10 BAR(R~1.5D - 180º)

MATERIAL :
- NAVINIC 10® CuNi10Fe1Mn
- NAVINIC 30® CuNi30Mn1Fe

DIMENSION : DIN 86090

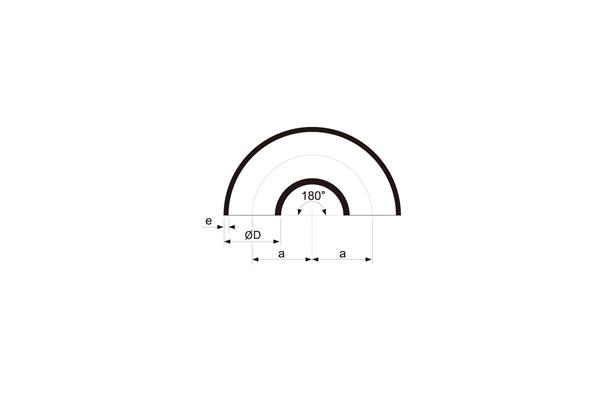

Outside diameter of pipe
ØD
Wall thicknessRadiusTheoretical weight
nominal inchactual mme mma mmkg/ piece
SEAMLESS
1/220.01.025.00.04
3/425.01.527.50.08
130.01.533.50.12
1 1/438.01.545.00.20
1 1/244.51.551.00.28
257.01.572.00.52
2 1/276.12.095.01.22
388.92.0114.51.74
■2.5114.52.10
4108.02.5142.53.28
5133.02.5181.05.16
■3.0181.06.20
6159.02.5216.07.40
■3.0216.08.88
7193.72.5270.011.30
■3.5270.015.70
8219.13.0305.017.32
■3.5305.020.70
10267.03.0378.026.20
■4.0378.034.90
12323.94.0457.051.22
■5.0457.064.00
SEAMLESS or SEAM WELDED
14368.04.0533.568.00
■5.5533.593.40
16419.14.0609.588.64
■6.0609.5132.80
SEAM WELDED
18457.24.0686.0108.94
■6.0686.0145.26
20508.04.5762.0151.24
■6.5762.0251.00
24610.05.0915.0242.48
■8.0915.0388.00
Other diameters, wall thinknesses and outside diameters are also available upon request.
