제품명 Elbow (Elbows 45° Short)
모델명
시리즈 Butt Weld Fittings
카탈로그
제품소개

Elbows 45° Short

MATERIAL : DHM 10® CuNi 90/10

DIMENSION :
- DIN 86090
- EEMUA 146 16Bar/20Bar

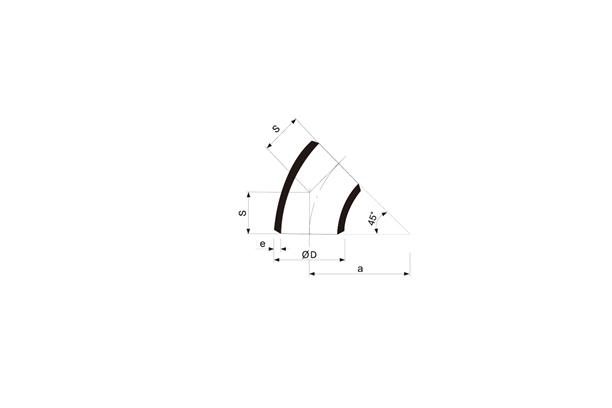

Outside diameter of pipe ØDWall thicknessRadius Theoretical weight
nominal inchactual mme mma mms mmkg/ piece
SEAMLESS
1/22012510.40.01
3/4251.527.511.40.02
1301.533.5140.03
1 1/4381.545190.05
1 1/244.51.551210.07
2571.572300.13
2 1/276.1295390.30
388.92/■2.5114.5470.43/0.54
41082.5142.5590.82
51332.5/■3181751.29/1.55
61592.5216891.85/2.22
7193.7■32701122.82/3.94
8219.13/■3.53051264.33/5.04
SEAMLESS or SEAM WELDED
102673/■43781576.55/8.73
12323.94/■545718912.80/16.00
143684/■5.5533.522117.00/23.37
16419.14/■6609.525229.90/33.20
SEAM WELDED
18457.24/■668628430.70/46.05
205084.5/■6.576231641.90/62.85
246105/■891537960.62/97.00
Outside diameter of pipe ØDWall thicknessRadius Theoretical weight
nominal inchactual mme mma mms mmkg/ piece
SEAMLESS
1302.538220.06
1 1/4382.548250.09
1 1/244.52.557290.13
2572.576350.23
2 1/276.12.595440.38
388.92.5114510.54
41083152641.05
61593229952.35
SEAMLESS or SEAM WELDED
8219.143051275.75
102674.53811599.85
12323.95.545719017.53
SEAM WELDED
143686.553322227.46
16419.1761025438.50
18457.2868628654.10
205088.576231870.93
2461010.5914381126.42
28711121067438196.30
3281313.51219502288.00
3691413.51372565418.60
