Dual Fractional RF technology

Fractional RF Micro-needle & Fractional RF Sub-lative Rajuvenation.

New collagen, skin tightening and overall rejuvenation.

Non-ablative + Ablative

Safer & Effective thermal energy delivery to the treatment area Clean and even energy delivery Clean and even treatment result with accurate matrix array

Safe & Effective for all Skin Type

Cellina PR has been developed for skin rejuvenation of all kinds skin types as devised Dual functions that achieve 2ways of non-ablative and ablative in one platform. Cellina PR system performs Epidermis with RF matrix system and dermis with RF needle technology. That Cellina PR’s 3-in-1 system visualizes an operation of skin rejuvenation treatment in all skins.

Fractional RF Micro needle

– RF Micro needle is for ablative Tx.

– An effective and direct thermal stimulation to adjustable exact target area or depth of skin layer for remodeling collagen with less damage on epidermis.

Fractional RF (Non-ablative)

Fractional RF(Non-ablative) Rejuvenation is…

The Ffacional RF delivers thermal energy to the treatment area more safely, more effectively. It allows treatment regardless of skin type. Laser is mostly absorbed by melanin, especially in darker skin.

Besides, resurfacing laser can be aggressive at the epidermal level. So, it is quiet risky to treat with laser on the dark skin. But, RF is able to avoid targeting the melanin in the skin since it is no longer dependent on a light & laser energy to heat the skin. This is Fractional skin rejuvenation method for safe treatment.

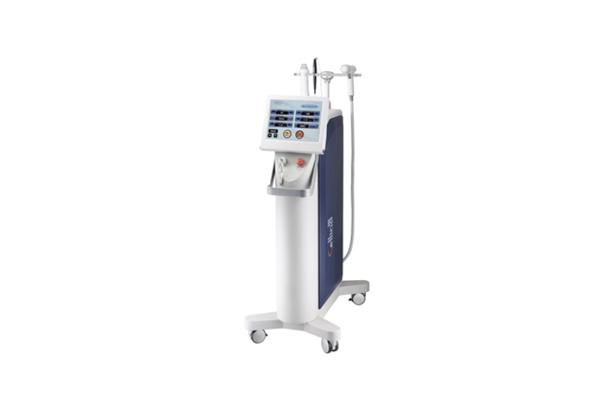

Cellina Main body

- System type: Bipolar RF Micro needle

- Frequency: 1 MHz

- Total RF Treatment Level:Up to Level 10

- Dual Operation Mode: Fractional RF Micro-needle(FRM) / Fractional RF ablative(FRS)

- Max. Energy: 100 j/㎠

- Disposable Tip: Micro-electrode needle (FRM) / Micro- electrode tip(FRS, Re-usable)

- Depth of Needle: 0.5 – 3 mm (Adjustable)

- Display: LCD

- Switch: Foot Switch

- Dimension(mm): 362mm(W) x 409mm(L) x 1713mm(H)

- Weight: 25kg

-Electrical Requirements: 100-240 VAC, 50-60 Hz

RF micro needle

- Energy source: RF(Radio Frequency)

- RF Output: Max. 2150v

- RF Electrode: Bipolar

- Spot size: 12 x 12mm(25pin)

- Repetition Rate: 1.0 ~ 3.0sec. & manual

- Adjustable depth: 0.5 ~ 3.0mm

- Duration Time (Emission): 100ms ~ 300ms

RF fractional

- Laser Type: RF(Radio Frequency)

- RF Output: Max.850v

- RF Electrode: Bipolar

- Spot size: 12 x 12mm(64pin)

- Repetition Rate: 1.0 ~ 3.0sec. & manual

- Penetration depth :-

- Duration Time (Emission): 100ms ~ 300ms
