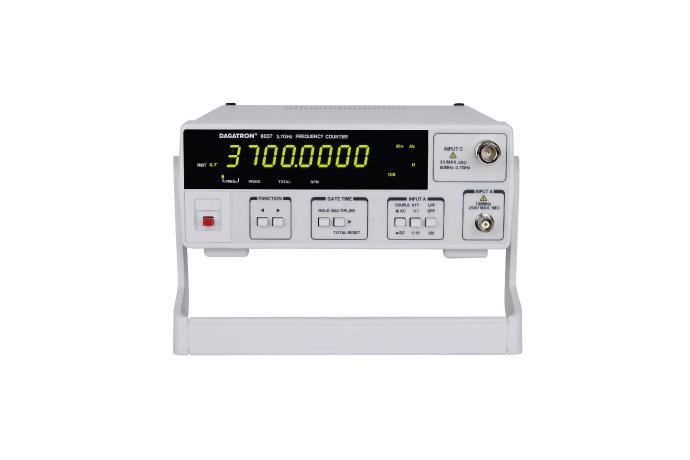

    DAGATRONICS Frequency Counter



    MODEL 8037 8030/8013 8030U / 8023
      Display 9 digit large green LED display, Overflow, Gate Time,  mHz, Hz, Khz, Mhz, nS, uS, mS,S, HOLD
    Frequency  Measurement  Measuring Range  Input A : 0.1Hz – 100Mhz  Input A : 0.1Hz – 100Mhz  InputA,B : 0.1Hz –  100Mhz
    Input C : 80Hz –3.7Ghz  Input C : 80Hz –3.0Ghz (8030)  Input C : 80Hz –   3.0Ghz (8030U)
      Input C : 80Hz –1.5Ghz (8013)  Input C : 80Hz –   1.5Ghz (8023)
    Gate Time  0.01Sec, 0.1Sec, 1Sec, 10Sec
    Resolution  1nHz to 10Hz
    Accuracy  Resolution ±Timebase Error ± 1Count
    Input  Characteristics  Terminal  A, C  A,B,C
    Sensitivity  A Input : 30mVrms  A ,B Input :  30mVrms
    C Input:
    10mVrms(80MHz-2.0GHz)
    20mVrms(2.0Ghz-3.0GHz)
    30mVrms(3.0GHz-3.2GHz)
    40mVrms(3.2GHz-3.5GHz)
    70mVrms(3.5GHz-3.7GHz)
    C input(8030/8030U) :
    25mVrms(80MHz-150MHz),
    20mVrms(150MHz-2.0GHz),
    60mVrms(2.0GHz-3.0GHz)
    C input(8013/8023):
    35mVrms(80MHz-1.1GHz),
    70mVrms(1.1GHz-1.5GHz)
    Impedance  A,B Input:1M Ω, C Input:50Ω
    Max.Input Voltage  A Input:250Vpp,C input:3Vrms  A,B: Input:250Vpp, Cinput:3Vrms
    Attenuator  A Input:x1,x10  A,B Input:x1,x10
    Slope A,B  Not Applied  ±selectable
    Trigger A  Positive or Varialbe
    Low Pass Filter  A Input:-3dB point at Approx,100kHz  A,B Input:-3dB point at Approx,100kHz
    Multi Function  For input A  Period  Range:10nSec to 10Sec, Resolution:1pSec to 1nSec, Accuracy:± Resolution ±Timebase Error ± 1Count
    Totalize  Range:DC to 30MHz, Count capacity:0to 999999999(Max).
    RPM  6 RPM to 60 x 10^6RPM
    Comparison  Function for  Input A, B    TIME Interval (A to B)  Not Applied  Range:10mSec to 10Sec  L.S.D Display:100mSec  Resolution:±L.S.D. ±Trigger Error  Accuracy:Resolution±1 count
    Ratio (A/B)  Range:Ainput:0.1Hz to 10MHz  B input:5Hz to 10MHz  Accuracy:Resolution ±1 count  L.S.D.Display:Aχ N/B(N=1 to 1000)
    Time Base  Characteristics  Internal Timebase    ★ Frequency:10MHz TCXO,   ★Aging Rate:±1 PPM / year aging at 25 ★Temp,Stability:±3 PPM from 0 to 50  ★Line Boltage:Less than ±1 PPM with ± 10% line voltage variation.
    Frequency Standard Output  10MHz, 1Vpp or more(open-load)
    ExternalStandard Input  10MHz,1.5Vrms to 5Vrms
    General  Power Requirement  115/230 VAC +/- 10%, 48 to 66Hz
    Dimension / Weight  240(W)x270(D)x90(H)mm/Approx,2.5kgs
    Standard Accessories  Power Cord, Fuse, BNC to BNC cable, Manual

    생산 제품

    Medical Device

    Auto Strainer, GRAM
    AT-2000G
    Auto Strainer, Fluorescence
    AT-2000F
    Auto Strainer, Ziehl-Neelsen
    AT-2000Z
    Auto Strainer, Hematology
    AT-2000H
    Auto Strainer (Z.K.F)
    AT-3001
    Auto Strainer, Dual (G/Z)
    AT-3002
    Auto Strainer, Dual (G/F)
    AT-3003
    Reagent, AFB
    ZR-2A
    Reagent, AFB
    FR-2A
    Reagent, AFB
    FR-2B
    Reagent, GRAM
    GR-2A
    Reagent, HEMA
    HR-2A
    Auto Smear System
    Auto Strainer, Kinyoun
    AT-2000K
    Auto Strainer, Dual (G/H)
    AT-3004

    Laboratory & Industry

    Dust Collecting System
    DC-1000
    Table Top Exhaust Ventilation System
    CA-1000

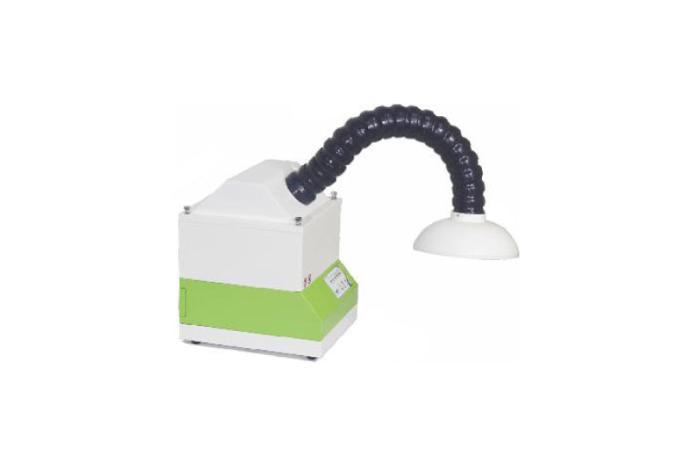

    Portable Exhaust Ventilation System
