CONNECTION DIAGRAM & DATA LOGGER(ACT-CB4)
E.17 Where the vessel ha s CCR, it is strongly Preferred that the CCR is equipped With an anemometer display and monitoring repeater with the capability to record (paper or digital) wind speed and direction. Dynamic Positioning (DP) vessels are Strongly Preferred to have additional anemometer displays on the bridge and in the engine control room designed to be capable of setting a minimum of two desired wind speed alarm limits with associated audible and visual alarms in the CCR and on deck if the set limits are exceeded.

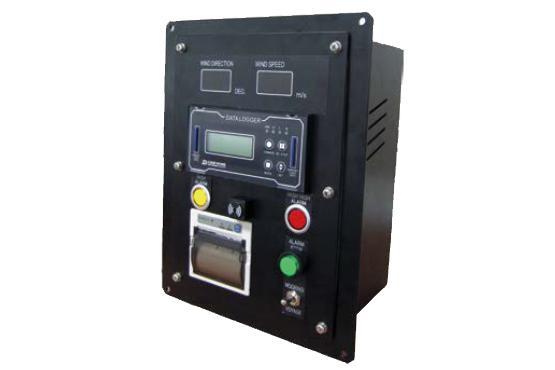

ACP-CB4
Model : ACP-CB4
Power Source : DC24V & AC220V
INPUT : Wind Speed & Direction
GPS or Master Clock
OUTPUT : Alarm, Printer, Data Log
Alarm & Horn
Type : Explosion Proof EEx D Ⅱ CT6
Power Source : AC220V 1PH 60Hz (LAMP;12V 15W) 0.156A
Weight : 6.93kg
Sound Level : Max.113 - 118dB/m
Lamp Rotating : 120 - 140rpm
IP Grade : 66
Approval : KOSHA, ABS, KR, KMM, ATEX
Type : General
Power Source : AC220V 1PH 60Hz (LAMP ; 12V15W) 0.156A
Weight : 3.94kg
Sound Level : Max.113 -118dB/m
Lamp Rotating : 120 - 140rpm
IP Grade : 56
