  • 대화엔지니어링

    Liquid Level Control System
    모델
    SDC-6000
    LS-TM
    시리즈
    Liquid Level Control System

    제품 소개

    General
    The Liquid level control system (SDC-6000) is designed with the highest confidence and high accuracy by 2-wire system.


    Operating principle
    Values of resistances inserted in the guide pipe of float switch(LS-TM) are sensing by a float and relayed to the controller according to the liquid level. The controller converts the resistance signal into 4~20mA and the signal information is process chip.
    Signals of Pump Start / Stop, automatic supply / drain, and high / low alarm are transmitted to each separate relay and controlled. Also, each signal is displayed by LED lamp built in the controller.


    Technical date

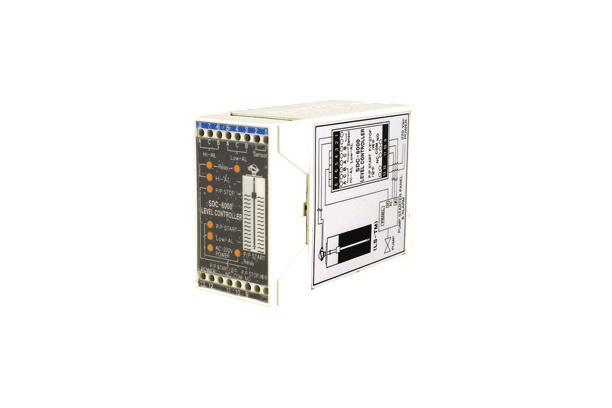

    Controller
    Type : SDC-6000
    Power supply : 100~250VAC, 60-Hz or 24V
    Max. temp : 65℃
    Anti-Explosion : Exia ll C T6
    Power consumption : 6.5W
    Connect Capacity : AC250V/5A


    level Sensor
    Type : LS-TM
    Certificate : KR, DNV, BV, LR, ABS
    IP grade : IP67
    Connect Capacity : 50A
    Connection : JIS 5K65/5K80/5K100, Others  Float : SUS304/Synthetic rubber

    * Ballast tank remote reading
    * Draft remote reading
    * Heeling and trim remote reading
    * Fuel oil tank remote reading
    * Waste waters, weels, locks, rivers, sea water, etc.


    Application
    Fresh Water, Sea Water, HFO, FO, Chemical Tank etc.



    Level Control System
