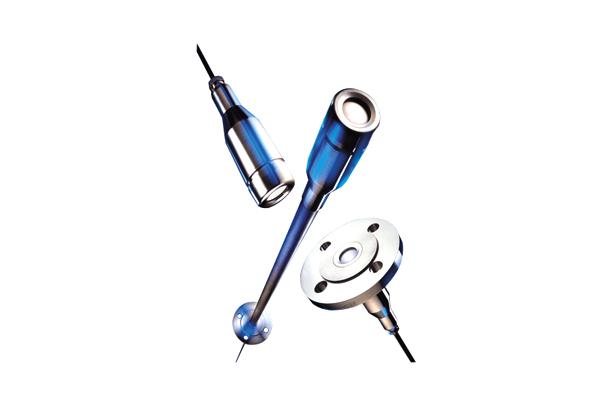

The 9700 Series electronic pressure / level transmitter is designed to perform in the arduous conditions of today’s level measurement applications.
Using temperature compensated, surface mount electronics and a ceramic capacitive sensor, the 9700 provides an accuracy of better than ±0.1% of calibrated span and excellent long term stability. Mounting options enable simple installation in situation from service tanks to remote reservoirs.
Pressure Range : 0.2~120 mH20
Accuracy : ±0.1% of calibrated span
Operating Temperature : -20℃ ~ 90℃
Zero adjustment : -20 to + 40% span
Span adjustment : +10 to + 100%(Upper range limit) Material : Sensor - Ceramic
Sensor Housing - Sus316, titanium
Output : Two-wire 4~20 mA
Supply Voltage : 10~30 VDC
Ingress Protection : 1P68
* High measuring Accuracy.
* High stabillty
* Programmable measuring system
* Easy maintenance
* Easy installation
* Ballast tank remote reading
* Draft remote reading
* Heeling and trim remote reading
* Fuel oil tank remote reading
* Waste waters, weels, locks, rivers, sea water, etc.
* L.R (Lloyds Register)
* B.V (Bureau Veritas)
* A.B.S (American Bureau of Shipping)
* K.R (Korean Register)
