    Bilge Hight Level Alarm System
    모델
    -
    시리즈
    Bilge Hight Level Alarm System

    제품 소개

    Operating principle
    As liquid level rises up to a set point, a level switch on the bilge well is actuated.
    The alarm signal is given to the bilge alarm panel through I.S barrier, and the audible and visual alarm on the alarm panel will be operated.


    Technical date
    Power Source : AC 110V/220V, 60Hz OR DC24V Output : Visiable & Audible Alarm
    Connection Size : JIS
    Setting Accuracy : ±5mm
    Setting Point : 120 ∼ 5000mm
    Max. Working Press. : 5Kg/㎠
    Min. Sp. Gr : 0.85
    Contact Rating : 250VAC, 0.5A
    IP Rating : IP 56(Option 67)

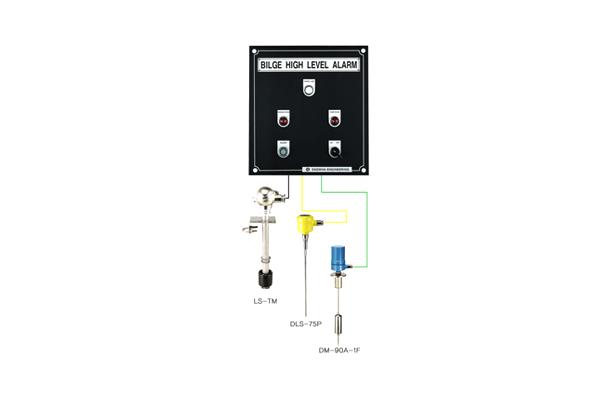

    Specification for Level switch

    Reed switch type level switch / LS-TM
     Contact : SPST
     Switch rating : AC 250V/15A , DC 30V/6A
     Max. Working press. : 5 Kg/㎠
     IP Rating : IP 56, IP67(option)
     Connect Size : 5K65A, 5K80A, 5K100A
     Material - Housing : ALDC, BSBM, ALC
     Flange : SS400, SUS304
     Float : SUS316, Synthetic Rubber

    Capacitance type level switch / DLS-75P
    Contact : SPDT
     Switch rating : AC 110V/220V, DC 30V/6A
     Max. Working temp. : -25 ~ +100℃
     IP Rating : IP 56, IP67(option)
     Connect Size : 5K65A, 5K80A, 5K100A, PT1”,
     PT1 1/2”
     Material - Terminal box. Housing : Ac,SUS316L
             - Flange : SS400,SUS304
             - Insulation : Tefron
             - Enclosure : Ip67

    Displase type level switch / DM-90A-1F

     Contact : SPDT, DPDT
     Switch rating : AC 250V/15A, DC 30V/6A
     Max. temp. : 180℃
     IP Rating : IP 56, IP67(option)
     Connect Size : 5K100A (STD.)
     Material - Body, Cover : ALC, SS400
             - Flange : SS400,SUS304
             - Displacer : SUS304
             - Guide pipe : SUS304

    BR : BILGE ROOM
    PR : PUMP ROOM
    BZ : BUZZER
    BS : BUZZER STOP
