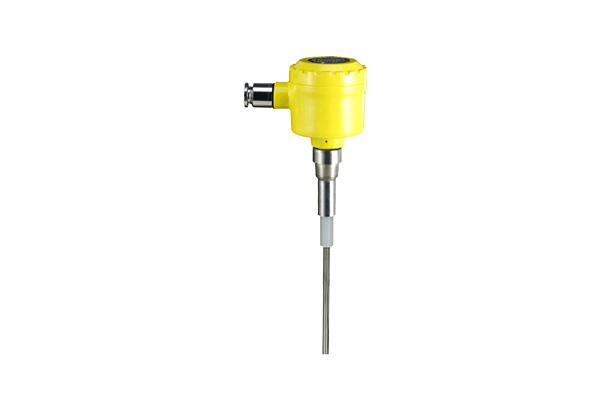

Capacitance Type Level Switch

모델명

시리즈

Capacitance Type Level Switch


구매 안내

아래는 참고용 정보이므로 세부 조건은 반드시 제조사/판매자에게 문의 바랍니다.

결제 방법

제조사/판매자에게 문의 바랍니다.

납기 정보

제조사/판매자에게 문의 바랍니다.

배송 정보

제조사/판매자에게 문의 바랍니다.

원산지

제조사/판매자에게 문의 바랍니다.


055-342-9115

제품 상세 설명

General
Capacitance Level Switch is used for automatic control, alarm setting and detecting interface by utilizing differences in inherent capacitance value of particles, solids, and liquids.


Operating principle
Capacitance is inversely proportional to the distance and proportional to the area. Every material has its own capacitance.
The sensor detects the capacitance and changes it into electrical signals.
Capacitance and conductance change between the electrode and the tank wall as the material contacts the electrode inserted into the tank.
A sensor in the electrode detects the impedance variation and sends out ON-OFF signals.


Application
Powder : Carbon, Iron, Dust, Soil, Sand and others.
Liquid : Water, Fuel Oil, Solvent, Alkali, Acid and others.
Viscous : Paint, sludge, Mud, Soap etc.



Mounting Instruction



Description model



Technical date
Power Source : AC 110V/220V ± 10% 50/60Hz
Power Consumption : 3VA
Output Contact : SPDT 250VAC, 5A
Measuring Frequency : Approx. 400KHz
Ambient Temp. Allowance : -25℃ ∼ +70℃
Working Temp. : -25℃ ∼ +100℃
Delay time setting 0 ∼ 20 sec.
Max. operating Press. : 10kg/㎠
Enclosure : Weather proof
Material : - Electrode :SUS304/SUS316
- Housing : AC
- Insulation : Teflon
Mounting Method : Top & Side


DLS - 75H


DLS - 75W


DLS - 75P


DLS - 75T


WIRING DIAGRAM
