디지털 타이머

모델명

시리즈

집진기 부품


구매 안내

아래는 참고용 정보이므로 세부 조건은 반드시 제조사/판매자에게 문의 바랍니다.

결제 방법

제조사/판매자에게 문의 바랍니다.

납기 정보

제조사/판매자에게 문의 바랍니다.

배송 정보

제조사/판매자에게 문의 바랍니다.

원산지

제조사/판매자에게 문의 바랍니다.


051-319-2332

제품 상세 설명

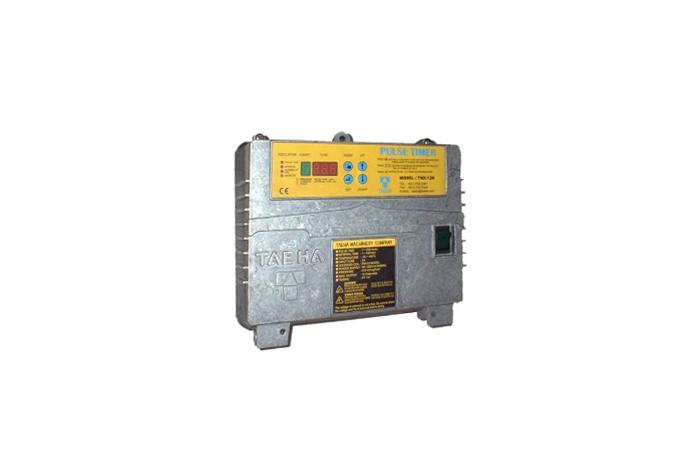

DAE-HA offers an accurate TN timer series, According to the crystal movement and the EP-ROM pack, all DAE-HA timers can set accurate Time of digital mode.

The time setting of TN series is consisted of pulse time and interval time All exterior control gives you the safe and convenient control function. Aluminum die-casted enclosure will make your system more fancy.

Specification TNE Timer TNX Timer
Output Signal Electrical Pneumatic
Control Type Analog EP-ROM Digital
Enclosure Aluminum Die-Casting NEMA4 Aluminum Die-Casting NEMA4
Max. Output 10p / 20p 6p / 12p
Pulse Timer Volume register 0.001 ~ 0.999sec
Dwell Timere Volume register 1 ~ 999sec
Power Supply AC85 ~ 240V / 50 ~ 60Hz AC85 ~ 240V / 50 ~ 60Hz
Fuse 2A 2A
Pressure - 0.5 ~ 7.5 kg/㎠
Operating Temperature -20 ~ +60℃
(If not Freezing condition)
-20 ~ +60℃
(If not Freezing condition)
Terminal Type 1.25 4Y 1.25 pin & 1.25 4Y













Features(TNE TIMER)

1. Aluminum Die-Casted Box As the PCB of TNE timer is located in the aluminum die-casted Box, if facilitates the water-proofing and dust-proofing.

2. Economical design contains the essential functions only for the dust collector.

3. Exterior design It has exterior display like LED lamp and main power switch.





DIMENSION
