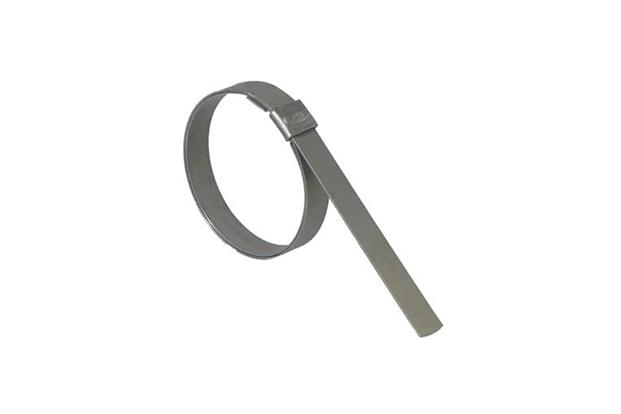

JUNIOR® SMOOTH ID CLAMPS

Wide choice of sizes and materials in a leak resistant design. Smooth ID Clamps reduce the risk of leaks especially when used on thin walled hoses.

- Vibration resistant lip lock design. No hammering or crimping

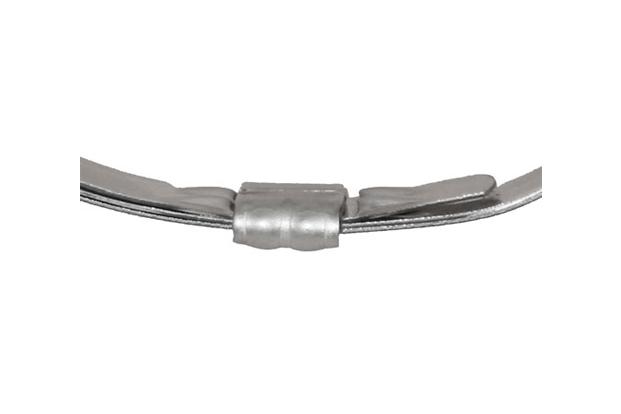

- Unique buckle nest and smooth ID design reduces leak paths

- Double wrapped steel bands for additional strength

- Various materials for corrosive environments

- Available for hose assemblies up to 8" outside diameter

PRODUCT SPECIFICATIONS

201 SS* PART NO.	316 SS* PART NO.	GCS* PART NO.	WIDTH (MM)	THICKNESS (MM)	INSIDE DIAMETER (MM)	WEIGHT (KG)	PACKAGE QUANTITY
JS2409	NA	NA	6.4	0.51	20	0.9	100/Box
JS2429	NA	NA	6.4	0.51	25	1.0	100/Box
JS2419	NA	NA	6.4	0.51	34	1.1	100/Box
JS2529	NA	NA	6.4	0.51	38	1.2	100/Box
JS2539	NA	NA	6.4	0.51	50	1.5	100/Box
JS2209	NA	NA	6.4	0.51	63	1.7	100/Box
JS2569	NA	NA	6.4	0.51	69	1.7	100/Box
JS2449	NA	NA	6.4	0.51	76	1.9	100/Box
JS2579	NA	NA	6.4	0.51	88	2.1	100/Box
JS2019	JS4019	JS3019	9.6	0.64	20	1.6	100/Box
JS2439	NA	JS3439	9.6	0.64	25	1.8	100/Box
JS2029	JS4029	JS3029	9.6	0.64	34	2.3	100/Box
JS2459	JS4459	JS3459	9.6	0.64	50	2.7	100/Box
JS2219	NA	NA	9.6	0.64	63	3.1	100/Box
JS2469	NA	NA	9.6	0.64	76	3.4	100/Box
JS2559	NA	NA	9.6	0.64	88	3.9	100/Box
NA	JS4489	NA	9.6	0.64	101	4.3	100/Box
JS2039	NA	JS3039	12.7	0.76	25	3.0	100/Box
JS2049	JS4049	JS3049	12.7	0.76	31	3.3	100/Box
JS2319	NA	NA	12.7	0.76	38	3.7	100/Box
JS2369	NA	JS3369	12.7	0.76	44	4.0	100/Box
JS2379	NA	NA	12.7	0.76	50	4.3	100/Box
JS2339	NA	JS3339	12.7	0.76	63	4.9	100/Box
JS2309	NA	JS3309	12.7	0.76	69	5.1	100/Box
JS2349	JS4349	NA	12.7	0.76	76	5.5	100/Box
JS2479	NA	NA	12.7	0.76	88	6.2	100/Box
JS2499	NA	NA	12.7	0.76	101	6.8	100/Box
JS2059	JS4059	JS3059	15.8	0.76	38	4.7	100/Box
JS2069	JS4069	JS3069	15.8	0.76	44	5.1	100/Box
JS2079	NA	JS3079	15.8	0.76	50	5.5	100/Box
JS2089	NA	JS3089	15.8	0.76	57	6.0	100/Box
JS2099	JS4099	JS3099	15.8	0.76	63	6.3	100/Box
JS2109	NA	JS3109	19.1	0.76	69	4.2	50/Box
JS2119	JS4119	JS3119	19.1	0.76	76	4.4	50/Box
JS2129	NA	JS3129	19.1	0.76	88	4.9	50/Box
JS2139	JS4139	JS3139	19.1	0.76	101	2.8	25/Box
JS2149	JS4149	JS3149	19.1	0.76	114	3.0	25/Box
JS2159	JS4159	JS3159	19.1	0.76	127	3.3	25/Box
JS2169	NA	NA	19.1	0.76	152	3.7	25/Box
JS2179	NA	JS3179	19.1	0.76	165	4.2	25/Box
JS2189	NA	JS3189	19.1	0.76	177	4.6	25/Box
JS2199	NA	NA	19.1	0.76	203	5.0	25/Box

* BAND-IT reserves the right to substitute material with equal or better corrosion resistance and/or mechanical specifications

** Junior Adapters, either J00169 or J05069, must be used with C00169

Alloy 625 BAND-IT JR® Smooth ID Preformed Clamps

Contact for minimum order quantities

PART NUMBER	WIDTH (MM)	THICKNESS (MM)	INSIDE DIAMETER (MM)
JS6279	19.1	0.76	50
JS6109	19.1	0.76	69
JS6119	19.1	0.76	76
JS6129	19.1	0.76	88
JS6139	19.1	0.76	101
JS6159	19.1	0.76	127
JS6709	19.1	0.76	133
JS6169	19.1	0.76	152
JS6179	19.1	0.76	165
JS6189	19.1	0.76	177
JS6199	19.1	0.76	203
