제품명 Stainless Steel Gasket Filter
모델명 FLT-GF Series
시리즈 Filter & Diffuser
카탈로그
제품소개

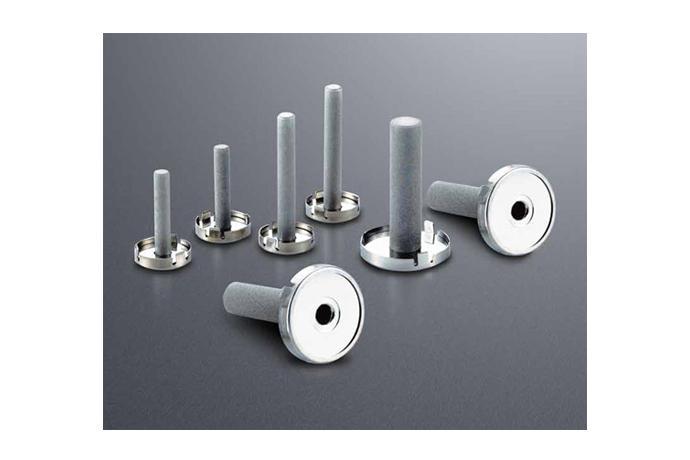

ASFLOW Stainless Steel Gasket Filter FLT-GF Series



Specifications

Product Description FLT-GF1-04 FLT-GF3-04 FLT-GF20-04 FLT-GF50-08
Rated Flow 1 SLPM 3 SLPM 20 SLPM 50 SLPM
Retention
(At Rated Flow)
Greater than 99.9999999 (9 log) removal of all
particles down to 0.003 μm; confirmed at the most
penetrating particle size of 0.08 μm.
0.4 μm nominal 0.4 μm nominal
Material 316L SS 316L SS 316L SS 316L SS
Face Seal Gasket Size 1/4 inch 1/4 inch 1/4 inch 1/2 inch
Element Length (Nominal) 1 inch 3 inch 1 inch 1 inch
Maximum Differential
Pressure (20°C)
1000 psid
Forward or Reverse
1000 psid
Forward or Reverse
1000 psid
Forward or Reverse
1000 psid
Forward or Reverse
Maximum Recommended
Operating Temperature
450°C (Inert Gas) 450°C (Inert Gas) 450°C (Inert Gas) 450°C (Inert Gas)
Change out Interval System Dependent System Dependent System Dependent System Dependent



Product Dimension

ASFLOW Stainless Steel Gasket Filter FLT-GF Series 1
