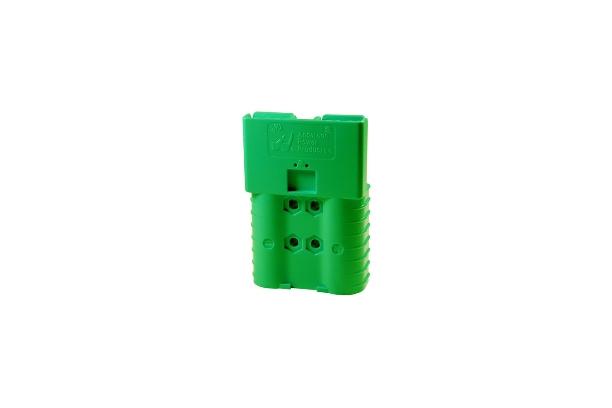

SBX® 350 MULTIPOLE CONNECTOR (UP TO 350 AMPS)
The innovative Anderson Power Products™ SBX® 350 connector provide cost-effective reliability, design flexibility and safety for your products' manufacture, installation and maintenance.
Anderson Power Products™ 2 pole SBX® 350 connector is available with a 350 amp rating, 600 Volts continuous AC or DC operation. There are Anderson Power Products™ SBX® 350 connectors for many applications and wire sizes, 2/0 to 300 mcm (67.4 mcm to 152 mm). Mechanical keys ensure that the SBX® 350 connector will only mate with connectors of the same color. Different color housings are selected to identify voltages, thus preventing mismatching of the power supply system.
Features
- Mechanical keyed housings
- Single-piece housing and unitized construction
- Genderless design
Benefits
- Prevents accidental mating of components operating at different voltage levels
- Provides industrial quality and durability
- Makes assembly quick and easy and reduces number of parts stocked
Specifications
* UL Rated for 65°C largest wire or cable size
** Contact us for higher temperature rated connector
Mechanical Drawing
