Syringe Pump
모델명
시리즈
Syringe Pump
구매 안내
아래는 참고용 정보이므로 세부 조건은 반드시 제조사/판매자에게 문의 바랍니다.
결제 방법
제조사/판매자에게 문의 바랍니다.
납기 정보
제조사/판매자에게 문의 바랍니다.
배송 정보
제조사/판매자에게 문의 바랍니다.
원산지
제조사/판매자에게 문의 바랍니다.
제품 상세 설명
Overview

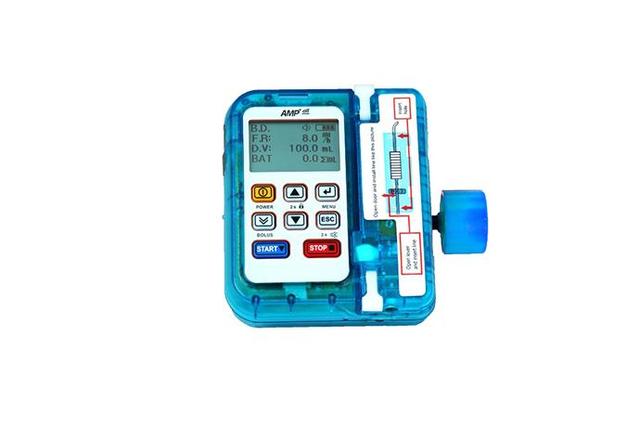

The IP-7700 is intended for the infusion of chemicals such as anti-cancer drugs, oxytonic, nutrition, and drug for chemotherapy medication. This device is designed for high flow-rate accuracy and ease of handle in the infusion of solutions with the equipped peristaltic finger system and the use of a drop sensor control.
Features
| Infusion principle | Linear Peristaltic Finger |
|---|---|
| Alarms (Audio & Visual) | Air in line, Occlusion, Flow Error (Free Flow), Standby, K.V.O. (infusion Completion), Door open, Low battery, Device malfunction |
| Special function | Keypad lock, Retain memory, Remaining time, Alram repeat, Open system, K.V.O., Purge, Bolus, Occ. Level, History call-back, Dosage mode (option), Nurse call (Option), Profile (Option), Central system (Option) |
| Weight | Approximately 3.5KG (without rechargeable battery 3KG) |
| Dimension | 100 x 190 x 250 (mm) |
Specifications
| Flow rate range | 1~1000ml |
|---|---|
| Delivery Volume | 1~9999ml |
| Total infused volume (Volume to be infused) | 1~9999ml |
| Accuracy with approved IV set | Within ±5% |
| Power requirements | AC110/230V, 50/60Hz or DC9.6C, DC12V/24V, 2A |
| Battery type | Ni-Cd rechargeable battery |
| Battery operating time | 4 hours (at 125ml/h) |
| Operating condition | 10~40℃, 30~85% RH (no condensation) |
| Storage condition | -10~45℃, 10~95% RH (no condensation) |
