(주)에이원밸브

(주)에이원밸브

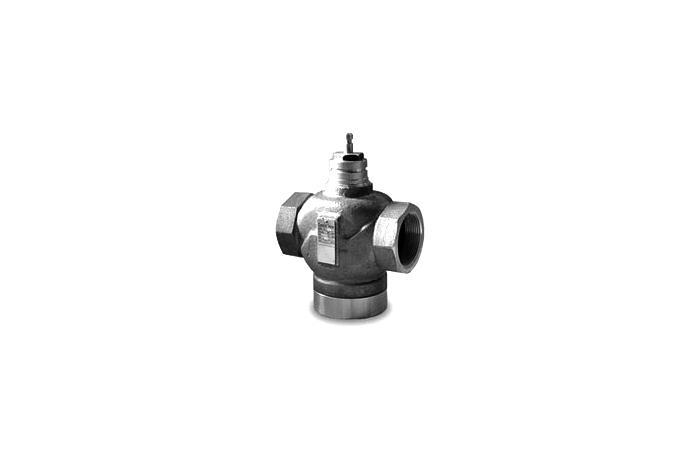

Electric Linear Valve (3-Way)

모델명

시리즈

Electric Auto Valve


구매 안내

아래는 참고용 정보이므로 세부 조건은 반드시 제조사/판매자에게 문의 바랍니다.

결제 방법

제조사/판매자에게 문의 바랍니다.

납기 정보

제조사/판매자에게 문의 바랍니다.

배송 정보

제조사/판매자에게 문의 바랍니다.

원산지

대한민국


055-762-1905

제품 상세 설명

General

The valve which controls two positions or the proportion of cold/hot water, steam and air. The body and the seat are manufactured in bronze.
The valve stem staninless leakage by using an O-ring.
The feature curve of the valve stem stainless steel, and valve plug, STS. The stuffing box prevents leakage by using an O-ring.
The feature curve of the valve is equal percentage or linear type.

■ Technical Data
- Operating Pressure : 16 Kgf/㎠
- Operating Temp : -15 ~ 180℃
- Valve curve : Equal percentage or linear

- Leakage rate : ≤ 0.01% of Kvs value Class IV
- Bypass : ≤ 0.5% of Kvs valve
- Connection : PT screwed



Specification

Model DN FLOW Stroke Sv A-One Valve Electric Linear Valve (3-Way) AGE-S3 Series Pvmax Actuator A-One Valve Electric Linear Valve (3-Way) AGE-S3 Series 1 Ps(Kgf/㎠)
mm inch Kvs Cv mm AGE-20
Mixing Diverting
AGE-15S3 15 1/2" 4 4.7 20 30 8 8 2
AGE-20S3 20 3/4" 6.3 7.4 20 30 8 8 2
AGE-25S3 25 1" 10 11.7 20 30 8 8 2
AGE-32S3 32 1-1/4" 16 18.7 20 30 8 8 2
AGE-40S3 40 1-1/2" 25 29 20 30 8 8 2
AGE-50S3 50 2" 40 46.7 20 30 8 8 2

  Sv : Rangeability (VDI 2173)
A-One Valve Electric Linear Valve (3-Way) AGE-S3 Series 2 Pvmax in Kgf/㎠ = max. permissible pressure difference across the valve at which the drive can still
......................................safely open and close the valve.
A-One Valve Electric Linear Valve (3-Way) AGE-S3 Series 3 Psmax in Kgf/㎠ = max. permissible pressure difference across the valve during maifunction at which
......................................the drive can close the valve.
