(주)에이원밸브

(주)에이원밸브

Screw Ball Valve

모델명

시리즈

Pneumatic Auto Valve


구매 안내

아래는 참고용 정보이므로 세부 조건은 반드시 제조사/판매자에게 문의 바랍니다.

결제 방법

제조사/판매자에게 문의 바랍니다.

납기 정보

제조사/판매자에게 문의 바랍니다.

배송 정보

제조사/판매자에게 문의 바랍니다.

원산지

대한민국


055-762-1905

제품 상세 설명

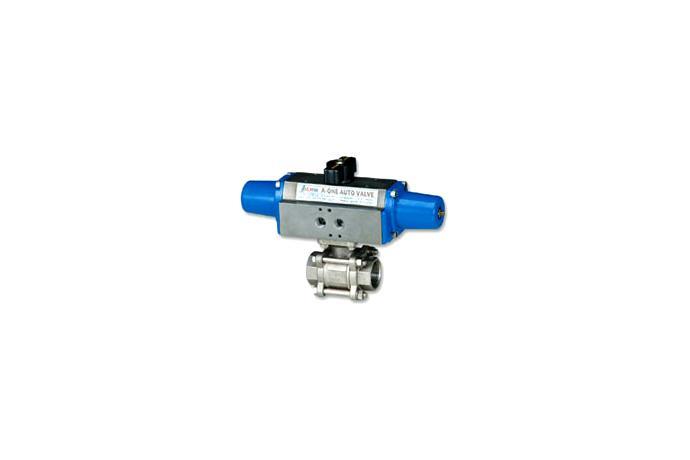

A-One Valve Screw Ball Valve

■ Water distribution pipes
■ Industrial cleaning machines
■ Sterilizers, Boilers
■ Air conditioners, Water filters
■ Medical equipments, Vacuum packing

Valve Size10A(3/8")15A(1/2")20A(3/4")25A(1")32A(1-1/4")40A(1-1/2")50A(2")
Actuator ModelAD40AD50
Actuator TypeDouble Acting
Operating MediaCompressed Dry Air
Operating Pressure4 ~ 7kg/㎠
Rotating Angle90 ˚ ±3 ˚
Fluid Temperature-10 ~ 90 ℃
Pressure Range10kgf/㎠
Body MaterialSUS316/BallPTFE/Seat
AccessorySolenoid Valve, Air filter Regulator, Limit Switch Box, E-P Positioner



A-One Valve Screw Ball Valve  1

■ Water distribution pipes
■ Industrial cleaning machines
■ Sterilizers, Boilers
■ Air conditioners, Water filters
■ Medical equipments, Vacuum packing

Valve Size10A(3/8")15A(1/2")20A(3/4")25A(1")32A(1-1/4")40A(1-1/2")50A(2")
Actuator ModelAD40AS50AS65
Actuator TypeSingle Acting
Operating MediaCompressed Dry Air
Operating Pressure4.5 ~ 7kg/㎠
Rotating Angle90 ˚ ±3 ˚
Fluid Temperature-10 ~ 90 ℃
Pressure Range10kgf/㎠
Body MaterialSUS316/BallPTFE/Seat
AccessorySolenoid Valve, Air filter Regulator, Limit Switch Box, E-P Positioner



A-One Valve Screw Ball Valve  2

■ Water distribution pipes
■ Industrial cleaning machines
■ Sterilizers, Boilers
■ Air conditioners, Water filters
■ Medical equipments, Vacuum packing

Valve Size8A(1/4")10A(3/8")15A(1/2")20A(3/4")25A(1")32A(1-1/4")40A(1-1/2")50A(2")
Actuator ModelAD40AD50AD65
Actuator TypeDouble Acting
Operating MediaCompressed Dry Air
Operating Pressure4 ~ 7kg/㎠
Rotating Angle90 ˚ ±3 ˚
Fluid Temperature-10 ~ 90 ℃
Pressure Range10kgf/㎠
Body MaterialSUS316/BallPTFE/Seat
AccessorySolenoid Valve, Air filter Regulator, Limit Switch Box, E-P Positioner



A-One Valve Screw Ball Valve  3

■ Water distribution pipes
■ Industrial cleaning machines
■ Sterilizers, Boilers
■ Air conditioners, Water filters
■ Medical equipments, Vacuum packing

Valve Size8A(1/4")10A(3/8")15A(1/2")20A(3/4")25A(1")32A(1-1/4")40A(1-1/2")50A(2")
Actuator ModelAS40AS50AS65
Actuator TypeSingle Acting
Operating MediaCompressed Dry Air
Operating Pressure4.5 ~ 7kg/㎠
Rotating Angle90 ˚ ±3 ˚
Fluid Temperature-10 ~ 90 ℃
Pressure Range10kgf/㎠
Body MaterialSUS316/BallPTFE/Seat
AccessorySolenoid Valve, Air filter Regulator, Limit Switch Box, E-P Positioner
