ZEUS TECHNO

ZEUS TECHNO

HF Welder

Model

Series

Auxiliary


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

• Programmable welder parameter, 7 steps setting_Voltage, Current, Time

• Selectable Multi-Channel by preset welding parameter_ up to 16CH

• Constant Hi-quality welding by selectable feedback function_CV

• Welding Checker_Real time welding state monitor_NG detection_Machine Stop

• Minimized High-Efficiency Transformer_Amorphous Core

• Water Chiller 1/2H Power



SPECIFICATION

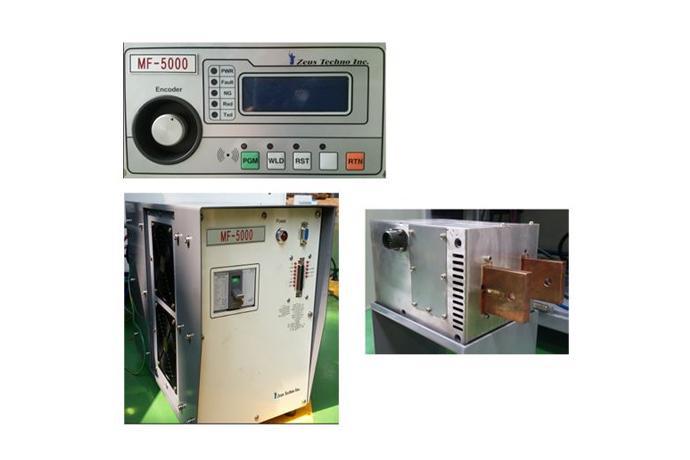

Specification MF-5000

Output Current

5,000A Max

Power Input

3P 220V, 60(50)Hz 30KVA Max

Transformer

5,000A, 15V Max

Dimension

Controller : 16.5L x 8.3W x 12H Inch, Transformer : 13.3L x 10.0W x 7.2H Inch
