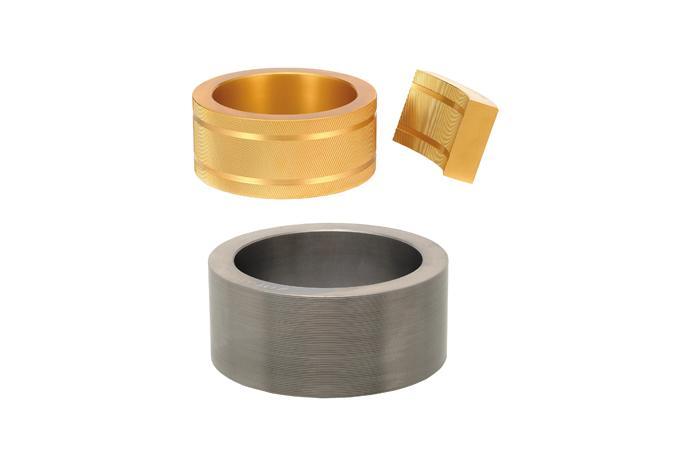

    Feeding Planetary Thread & Form Rolling Machine
    Model
    T/C DIES
    Series
    Rolling Machine

    Product Description

    - 40" Vibratory Feeder Bowl, ATAC Drive by Motion Sensor
    - Nail Inserting by Armed Finger with CAM Drive.!
    - Full Feature Vector Drive by-Heavy Duty Spiral Bevel Gear
    - Cooling apparatus for dies block guarantee extremely long life of dies.
    - Easy Setup / Easy Maintenance



    COMPETITIVE POWER

    Article

    ZEUS

    Others

    Material

    T/C + TiN Coating

    High Speed Tool Steel

    Replacement Period

    30 Days

    1 Day

    Rework Times

    5~20 Times

    2~5 Times



    Article

    T/C(Tungsten Carbide)

    HIES(High Speed Tool Steel)

    Hardness, Rockwell(HRC)

    83 ~ 93.5

    64 ~ 66

    Compressive Strength

    3000 ~ 7000 N/mm²

    1648 N/mm²

    Tensile Strength

    750 ~ 1500 N/mm²

    413.676 N/mm²

    Toughness

    0.4 ~ 6 J



    Thermal Conductivity

    80 ~ 120 W/mk

    19 W/mk

    Modulus of Elasticity

    400 ~ 700 KN/mm²

    217 KN/mm²

    Component

    WC Co
    WC TiC TaC Co
    WC TiC Co

    C
    Si
    Mn
    P
    S
    Cr
    Mo
    V
    W

    0.89 %
    0.20 %
    0.25 %
    0.022 %
    0.005 %
    3.98 %
    4.90 %
    1.77 %
    6.44 %



    MANUFACTURING PROCESS OF T/C POSDER METALLURGY

    Zeus Techno Inc. Feeding Planetary Thread & Form Rolling Machine T/C DIES



    PROCESS OF TIN(titanium nitride) COATING
    - PVD(physical vapor deposition)

    Zeus Techno Inc. Feeding Planetary Thread & Form Rolling Machine T/C DIES 1



    ADVANTAGES OF TIN COATING
    - High lubricity, Less FRICITION, freer chip flow reduces build-up edge formation giving a better work-piece finish.
    - Surface hardness of over 80 HRC protects tool from aeration and damaging effects of heat.
    - Corrosion resistant significantly improved.
    - Increases tool durability and tool life. Higher feeds and speeds can be used. - saving in productivity.



    SPECIFICATIONS

    Zeus Techno Inc. Feeding Planetary Thread & Form Rolling Machine T/C DIES 2



    RING SHANK

    Zeus Techno Inc. Feeding Planetary Thread & Form Rolling Machine T/C DIES 3

    Standard Forms

    FORM #

    THD/IN

    PITCH

    ANGLE A

    ANGLE B

    DEPTH

    1200

    12

    .0833

    30°

    20°

    .031

    1400

    14

    .0714

    30°

    20°

    .027

    1600

    16

    .0625

    30°

    20°

    .023

    1800

    18

    .0555

    30°

    20°

    .020

    2000

    20

    .0500

    30°

    20°

    .018

    2200

    22

    .0450

    30°

    20°

    .017

    2400

    24

    .0416

    30°

    20°

    .015

    2500

    25

    .0400

    30°

    20°

    .013

    2800

    28

    .0357

    30°

    20°

    .012

    3200

    32

    .0312

    30°

    20°

    .011



    SCREW SHANK

    Zeus Techno Inc. Feeding Planetary Thread & Form Rolling Machine T/C DIES 4

    Standard Forms

    FORM #

    60°

    67°

    75°

    LEGEND



    60-3-083

    67-4-083

    75-4-083

    Zeus Techno Inc. Feeding Planetary Thread & Form Rolling Machine T/C DIES 5

    60-4-096

    67-4-099

    75-4-099

    60-4-105

    67-4-113

    75-4-113

    60-4-113

    67-4-120

    75-4-120

    60-5-120

    67-4-135

    75-4-131

    60-5-131

    67-5-099

    75-4-148

    60-5-150

    67-5-113

    75-5-099



    67-5-120

    75-5-120



    67-5-131

    75-5-128



    67-5-148

    75-5-135
