  • ZEUS TECHNO

    Plastic Strip Nail Collator
    Model
    PS-160
    Series
    Plastic Strip

    Product Description

    Injection molded plastic strip and coil common nails from 32mm to 100mm long.
    This collator runs up to 1500 nails per minute and coats and drys nails while stacking them in piles of 10 on a take away conveyor.



    SPECITIFICATION

    Collating Speed
    Up to 1,500 Nails per Min.
    Nail Size
    LengthPS-90 : 1-3/4" to 3-1/2"(45~90mm)
    PS-160 : 1-3/4" to 6-1/4"(45~160mm)
    Diameter.080" to .162"(2.03~4.10mm)
    Strip SpecAngle0° to 40° Degree
    Nails per Strip20 to 40 Nails
    Electric Power30KVA, 3 phase/220V/50~60Hz
    Electronic MfgAs Specified by Customer
    Pneumatic MfgAs Specified by Customer
    Space Required5.3L x 17.5W x 7.2H Feet (5,250L x 1,600W x 2,150H mm)
    Weight8,000 Lbs (3,600kg)


    SAMPLE PRODUCT

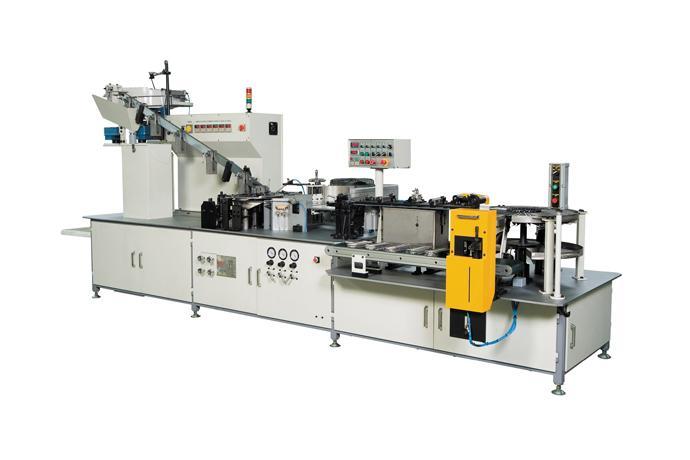

    Zeus Techno Inc. Plastic Strip Nail Collator PS-160
