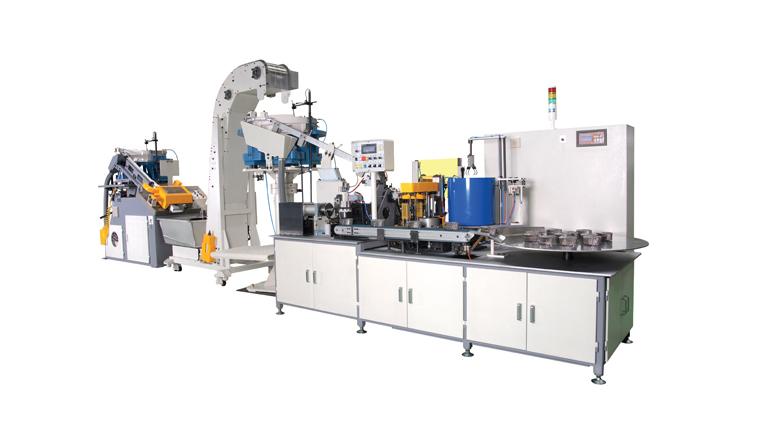

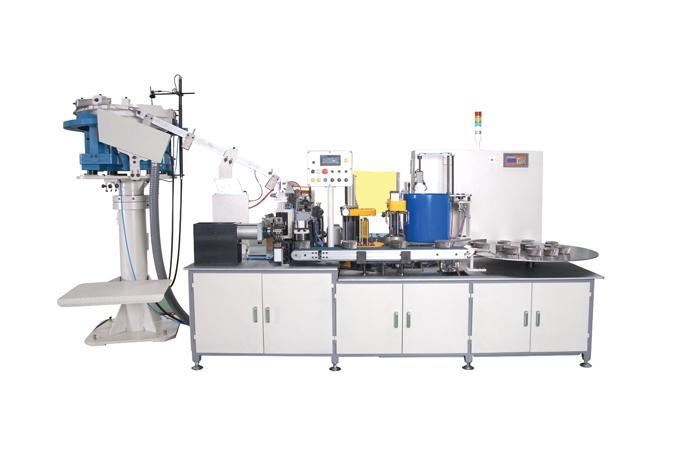

For high-speed production of regular wire welded coil nail and a Roofing nail.
This state of the art collator will produce any type of welded wire coil nails up to 2,800 nails in a coil.
Equipped with automatic coiler & cutter, automatic compact rubber bander, coating, drying, auto ejection & rotating abstract table.
SPECIFICATION
| Collating Speed | Up to 2,000 Nails per Min. | |
|---|---|---|
| Nail Size | Length | 3/4" to 4" (19~100mm) |
| Diameter | .0625" to .148 "(1.60~3.77mm) | |
| Strip Spec | Angle | 0° to 16° Degree |
| Nails per Coil | 200 to 400 Nails | |
| Electric Power | 20KVA, 3 phase/220V/50~60Hz | |
| Electronic Mfg | As Specified by Customer | |
| Pneumatic Mfg | As Specified by Customer | |
| Space Required | 12L x 8W x 6H Feet ( 3,700 x 2,400W x 1,800H mm) | |
| Weight | 5,500 Lbs ( 2,500kgs ) | |
