  • ZEUS TECHNO

    Compact Wire Coil Nail Collator
    Model
    CN-90
    Series
    Wire Weld

    Product Description

    For high speed production of regular wire welded coil nail.
    This state of the art collator will produce any type of welded wire coil nails up to 3,000 nails in a coil.
    Equipped with automatic coiler & cutter, automatic rubber bander, coating, drying, auto ejection & rotating abstract table.



    SPECITIFICATION

    Collating Speed
    Up to 3,000 Nails per Min.
    Nail Size
    Length3/4" to 4"(19~100mm)
    Diameter.0625" to .148 "(1.60~3.77mm)
    Nail SpecAngle0° to 16° Degree
    Nails per Coil225 to 400 Nails(Up to 3,000 Nails)
    Electric Power30KVA, 3 phase/220V/50~60Hz
    Electronic MfgAs Specified by Customer
    Pneumatic MfgAs Specified by Customer
    Space Required16L x 4.3W x 6H Feet (4,800L x 1,300W x 1,800H mm)
    Weight7,700 Lbs (3,500kg)


    SAMPLE PRODUCT

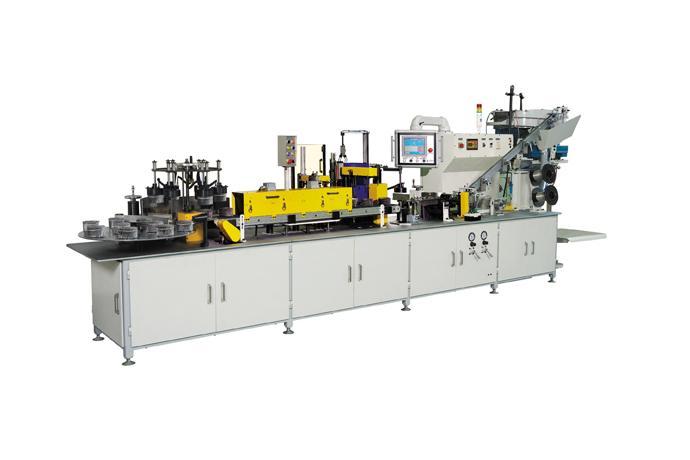

    Zeus Techno Inc. Compact Wire Coil Nail Collator CN-90
