Yujin Discom

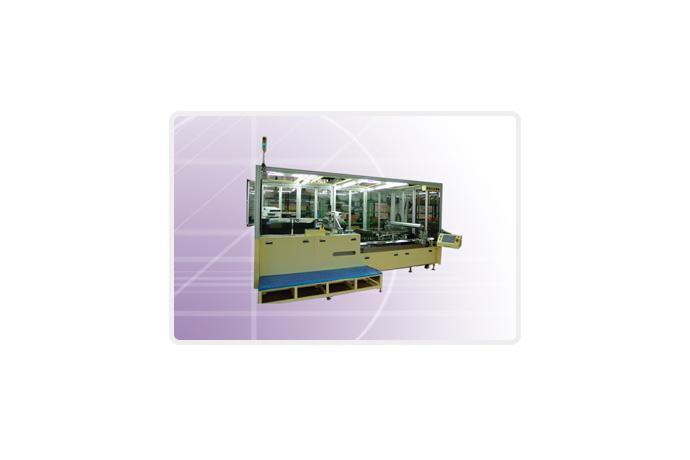

Polarizer Attach Machine (47")

Model

Series

Large Machine

Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Contact the manufacturer/supplier.

Description

본 설비는 TFT Panel 위에 Polarizer Film을 부착및 이미 부착된 Polarizer Film을 박리하는 설비로서 Loading/Unloading 및 Polarizer Film의 보호지 박리는 Manual 작업이고 Film 부착 작업은 자동으로 이루어 진다.

SPECIFICATIONS
EQUIP. DIMENSION	4113(W)mm×2225(L)mm×2553(H)mm
WEIGHT	2500Kg
GLASS SIZE	12.1 ~ 47 inch
GLASS THICKNESS	(0.3 x 1.1) * 2mm
STAGE SIZE	1100 X 650mm
TACT TIME (S/T)	45sec
ATTACH ACCURACY	±0.3mm
ROLL PRESSURE	Cylinder & 전공 Regulator
ATTACH ROLLER SIZE	Ø30-696Lmm
UTILITY	MAIN POWER: 3Phase, 220V, 19KW, 50/60Hz
UTILITY	AIR : 5~6 Kg/cm2, 1000L/min, Ø12 Hose, 800L/min, Ø12 Hose
