  • Yujin Discom

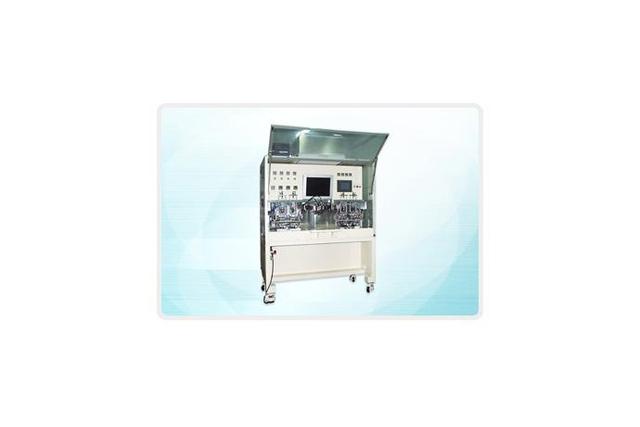

    Auto Visual Tester (AVT)
    Model
    -
    Series
    Module Line

    Product Description

    This machine is to test the electrical performance of the panel after polarizer film attach process. Belt conveyor used on cell loading and unloading. Test -> OK/NG -> Laser trim -> Unloading conveyor.

    SPECIFICATIONS

    EQUIP. DIMENSION

    3700(W)mm×1240(W)mm×2240(H)mm

    WEIGHT

    850Kg

    TFT LCD GLASS SIZE

    1.0 ~ 3.0inch

    TFT LCD GLASS THICKNESS

    (0.4x~1.1)x2mm

    TFT LCD GLASS STAGE

    65W x 85Lmm

    TURN ACCURACY

    X,Y = ±0.02mm

    TACKTIME(1 IC BONDING)

    12.0sec

    CAMERA ADJUST RANGE

    80mm~400mm

    INSPECTION HEAD AMOUNT

    2 Head

    UTILITY

    MAIN POWER: 3Phase, 220V, 5.0KW, 50/60Hz

    AIR : 5~6 Kg/cm2, 300L/min, Ø12 Hose
