YOUIL GRINDING MACHINE

YOUIL GRINDING MACHINE

Precision Forming Grinding Machine

Model

Series

Forming Grinding Machine


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

  Features

These series are widely selected for effective grinding of precision parts in various fields of mold, jig & fixture and IT industry as high-precision form grinding machine with 500×150 (200)mm grinding capacity.

X,Y,Z-Auto : YGS-50A

X-Auto,Y,Z-Manul : YGS-46XA

Manual : YGS-46 (Bed)

Manual : YGS-52B, 46B (Ball type)


  Specification

Item

unit

YGS-52B

YGS-46B

Capcity

Electric magnetic chuck

mm

450×200(Flat)

400×150(Flat)

Max. distance between table surface
and grinding wheel center

mm

0~540

0~465

Table

Traverse speed range(per min)

m/min

-

-

Cross movement-hand

Hand feed per revolution

mm

5

5

Graduation of hand wheel

mm

0.02

0.02

Cross movement-hydraulic

Intermittent feed

mm

-

-

Continuous feed

m/min

-

-

Grinding head

Automatic feed per table stroke

mm

-

-

Manual down feed

Fine feed

Graduation of hand wheel

mm

0.05

0.05

Graduation of hand wheel

mm

0.001

0.001

Hand feed per revolution

mm

2

2

Graduation of hand wheel

mm

0.01

0.01

Grinding Wheel

Diameter×Width×Bore

mm

Ø180×9~20×Ø31.75

Ø180×9~20×Ø31.75

Speed (50Hz/60Hz)

r.p.m

3000/3600

3000/3600

Motors

Grinding wheel spindle

Kw/p

1.0/2(1.5/2-Option)

1.0/2

Hydraulic pump

Kw/p

-

-

Weight (about)

kg

1500

1300

Wheel cover model



YGS/CVR-180B

YGS/CVR-180B



 Machine Dimensions

YOUIL GRINDING MACHINE Precision Forming Grinding Machine YGS-52B, YGS-46B

Division

A

B

C

D

E

F

G

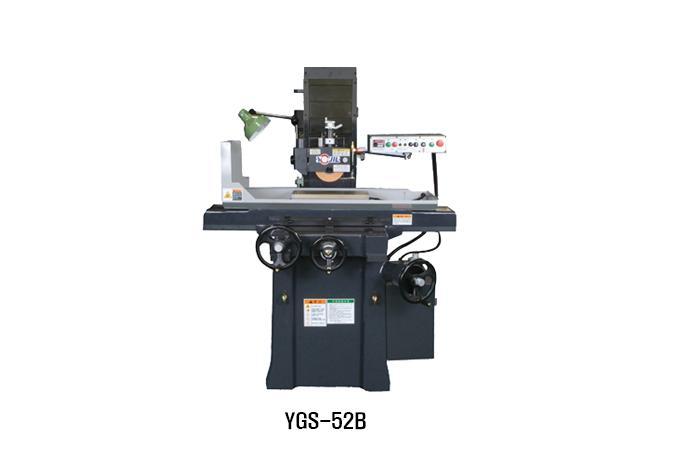

YGS-52B

740

1460

2020

950

1370

1500

1925

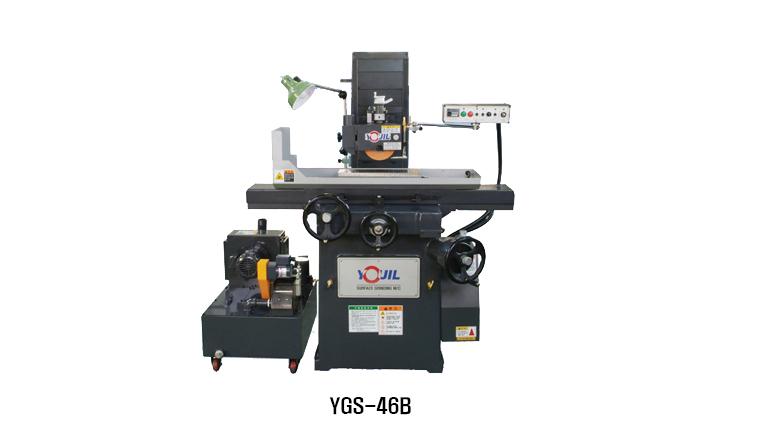

YGS-46B

720

1450

1970

880

1280

1410

1800



  Working Area

YOUIL GRINDING MACHINE Precision Forming Grinding Machine YGS-52B, YGS-46B 1

Division

YGS-52B

YGS-46B

a

500

465

b

180

180

c

19

19

d

130

105

e

115

85

f

289

242

g

204

154
