YOUIL GRINDING MACHINE

YOUIL GRINDING MACHINE

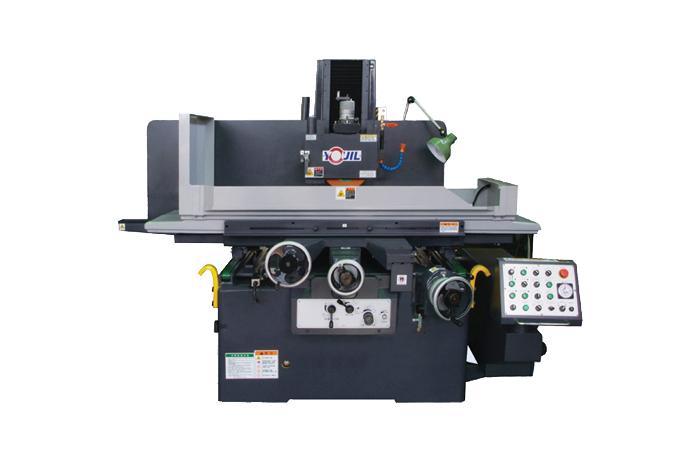

Precision Surface Grinding Machine

Model

Series

Surface Grinding


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

  Features

These series,various in size,are the most powerful saddletype common surface grinding machines that show high efficiency as well as high precision for large parts and molds.

High precision spindle and spindle motor with low vibration and noise
Durable and suitable for precision grinding

Intensive research planning and manufacture by high-elasticity structure
Excellent durability and heavy grinding available


  Specification

Item

unit

YGS-96A

Capcity

Electric magnetic chuck

mm

800×500

Max. distance between table surface and grinding wheel center

mm

0~697

Table

Traverse speed range(per min)

m/min

0.5~20

Cross movement-hand

Hand feed per revolution

mm

5

Graduation of hand wheel

mm

0.02

Cross movement-hydraulic

Intermittent feed

mm

0.5~20

Continuous feed

m/min

0.1~1.0

Grinding head

Automatic feed per table stroke

mm

0.002~0.03

Manual down feed

Hand feed per revolution

mm

1.0

Graduation of hand wheel

mm

0.005

Grinding Wheel

Diameter×Width×Bore

mm

Ø355/Ø305×38×Ø127

Speed (50Hz/60Hz)

r.p.m

1500/1800

Motors

Grinding wheel spindle

Kw/p

3.7/4

Hydraulic pump

Kw/p

2.2/4

Weight (about)

kg

5000

Wheel cover model



YGS/CVR-305A





  Machine Dimensions

YOUIL GRINDING MACHINE Precision Surface Grinding Machine YGS-96A

Division

A

B

C

D

E

F

G

YGS-96A

1390

2750

3320

1480

2200

2530

2200





  Working Area

YOUIL GRINDING MACHINE Precision Surface Grinding Machine YGS-96A 1

Division

YGS-96A

a

38

b

262

c

263

d

500

e

305

f

697
