Product Name

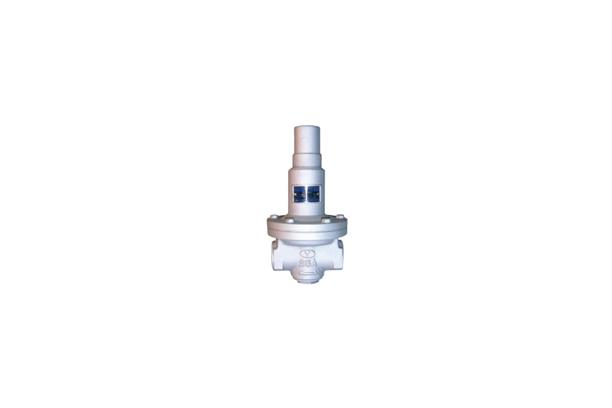

Diaphragm Type Pressure Reducing Valve
Model Name
RDD-1S
Size
-
Weight
-
Product Details
REDUCING VALVE : RDD-1S
- This is used in various facillities such as construction, factory, ship.
- This operates stably on wide range of flow capacity.
- This has the structure that doesn't happen the fault by impurities.
SPECIFICATION
Category | Content | ||
TYPE | DIRECT (DIAPHRAGM) | ||
Fluid | Air / Water / Liquid | ||
Meterial | Body | FCD450 | |
Seat | Bronze | ||
Disc | Synthetic Rubber | ||
Design Pressure | Inlet | 1~10kgf/cm2 | 0.1~1.0 MPa |
Outlet | 0.5~8kgf/cm2 | 0.05~0.8 MPa | |
Design temperature | 80︒C | ||
Connection Code | JIS B0203 TAPER THREAD | ||
Max Reducing Ratio | 10 : 1 | ||
DIMENSION
SIZE | L | H | H1 | d(PT) |
15A | 100 | 200 | 48 | 1/2" |
20A | 100 | 200 | 48 | 1/2" |
25A | 110 | 200 | 51 | 1 |
32A | 150 | 280 | 75 | 1-1/4" |
40A | 150 | 280 | 75 | 1-1/2" |
