Manufacturer
YESUNG ENGINEERING
Product Type
Machine
Brand
-
SKU
59826
Product Name
E.C.U
Model Name
YES-ECU
Size
-
Weight
-
Product Details
Electrical/Mechanical Specifications
| MODE | YES- U5-1 |
YES- U8-1 |
YES- U10-1 |
YES- U15-1 |
YES- U10-2 |
YES- U15-2 |
YES- U20-2 |
YES- U30-2 |
YES- U50-2 |
| Topology | Double Conversion On-line | ||||||||
| Input | 200/208/220/380/440/480/±15 | ||||||||
| Frequency Range |
50/60Hz±10% | ||||||||
| Phase | Singie Phase | Three Phase | |||||||
| Output | 110/115/120vac±2%(Typical),220/230/240vac±1%(Typical) | ||||||||
| Frequency Range |
50/60Hz±0.5% | ||||||||
| Phase | Singie Phase | ||||||||
| Distortion | <3%(Linear Load) | ||||||||
| Overload Capacity |
110%~150%For 30sec, > 150%Constant Power For 1sec | ||||||||
| Transfer Time | 0 mS | ||||||||
| Ac-Ac Efficiency |
>87%(Full Load Condition) | ||||||||
| Dc Voltage | 192VDC ~ 240VDC | ||||||||
| Audible Noise | <55dB(1.5 Meter From Surface) | ||||||||
| Dimension (W/D/H) |
330/700/830 | 360/700/350 | 400/700/850 | 640/830/1100 | 700/950/1300 | ||||
| Net Weight (kG) |
110 | 200 | 250 | 300 | 300 | 330 | 350 | 400 | 500 |
※ Specifications are subject to change without prior notice.

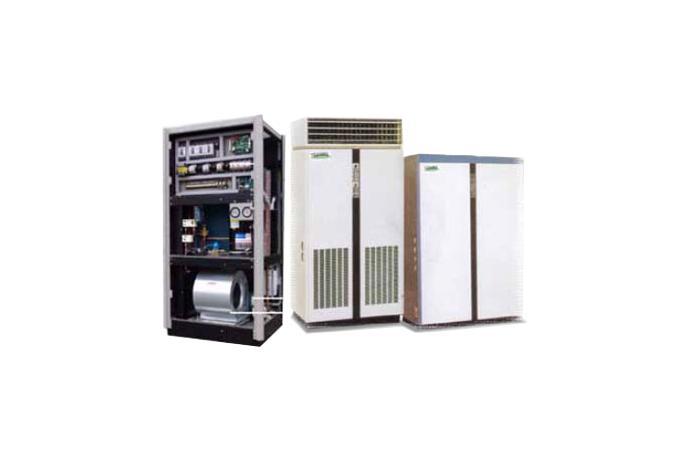

ECU air conditioner
