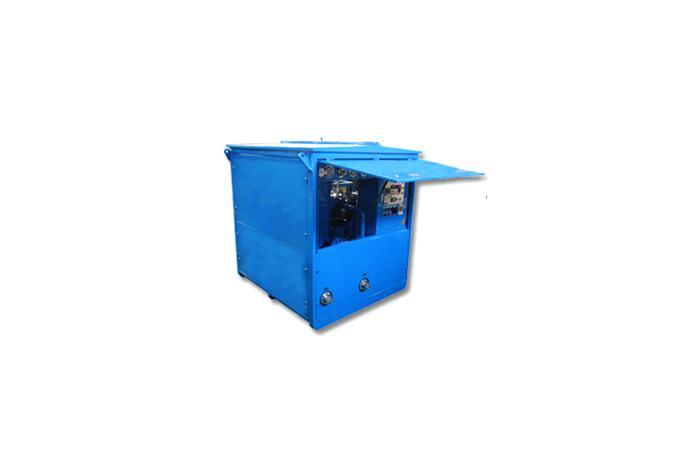

Oil Purifier & Degassing Machine
It is a device that was designed to increase specific quantity of oil by removing waste and moisture inside oil, as equipment that degasses and dehydrates transforming oil in high-vacuumed state.

Product Organization

Product Specifications
- Power: 220/3380V, 50/60Hz, 3Ph
- Reaching pressure: 5.3 x 10 Pa (4.0 x 10 Torr)
- Oil: Electric insulation (OT)oil
- Treatment Ability: 3,000 ~ 10,000 L /hr
- Noise: 80dB
- Weight: 2,000~3,500kg

Product Features
- Filtration capacity is outstanding by degassing and dehydrating due to an ejected oil within high-vacuum chamber.
- Minimized suction pressure caused by vacuum suction system.
- Minimized heat loss caused by the structure of an attached chamber heater.
- Having a foam automatic-removing function due to a sensor detecting system when there is excessive foam.
- Automatically adjustment system of flow rate of suction and discharge by a level controller.
- Simple structure of pumping
- Automatic and manual operation is possible
- Unattended operation is possible due to equipment operation in an automation system.
