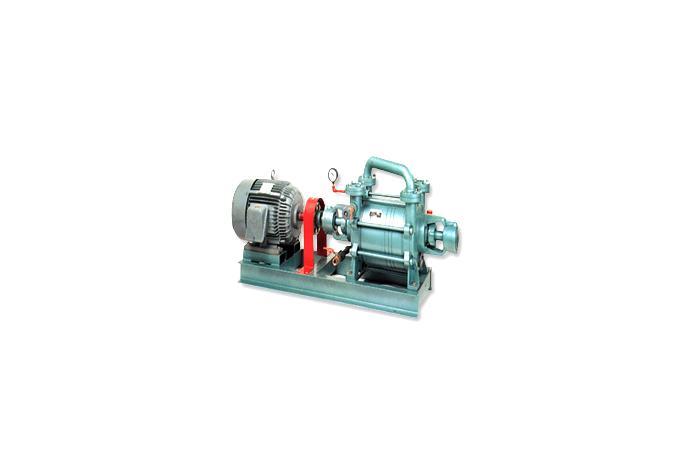

Watering Vacuum Pump

Model Name

HWVP-Series

Series

Vacuum Pump

Data

Manufacturer information

SF6 gas purification, Liquefaction reclaimer, Helium leakage test, Oil filter, Oil purifier, Vacuum pump, Gauge, Dryer, Chamber

Inquiry

Problem with product info?

Update request

Manufacturer

WOOSUNG VACUUM TECH

Product Type

Machine

Brand

SKU

60739

Product Name

Watering Vacuum Pump

Model Name

HWVP-Series

Size

Weight

Product Details

One Stage Water Ring Pumps

One Stage Water Ring Pumps Technical Data

INDEX	HWVP-1-100	HWVP-1-170	HWVP-1-300	HWVP-1-400	HWVP-1-500	HWVP-1-700
Displacement Speed (ℓ/min)	1000	1700	3000	4000	5000	7000
Ultimate Pressure Torr(Pa) ( water temperature 15℃ )	50(6.7×10³)	50(6.7×10³)	50(6.7×10³)	50(6.7×10³)	50(6.7×10³)	50(6.7×10³)
Rotational speed (R.P.M)	1750	1750	1750	1750	1750	1750
Motor (Kw)	2.2(4P)	3.7(4P)	5.5(4P)	7.5(4P)	11(4P)	15(4P)
Amount of water supplied (ℓ/min)	7	9	10	14	20	30
흡 기 구	40A	40A	50A	50A	80A	80A
배 기 구	40A	40A	50A	50A	80A	80A

INDEX	HWVP-1-1100	HWVP-1-1500	HWVP-1-1800	HWVP-1-2500	HWVP-1-3400
Displacement Speed (ℓ/min)	11000	15000	18000	25000	34000
Ultimate Pressure Torr(Pa) (water temperature 15℃)	50(6.7×10³)	50(6.7×10³)	50(6.7×10³)	50(6.7×10³)	50(6.7×10³)
Rotational speed (R.P.M)	1750	1750	1150	880	1150
Motor (Kw)	22(4P)	30(4P)	37(4P)	55(4P)	75(4P)
Amount of water supplied (ℓ/min)	38	42	60	85	95
흡 기 구	125A	125A	150A	200A	200A
배 기 구	125A	125A	150A	200A	200A

2단 수봉식 펌프

Two Stage water Ring Pumps Technical Data

INDEX	HWVP-2-045	HWVP-2-085	HWVP-2-150	HWVP-2-250	HWVP-2-300	HWVP-2-400	HWVP-2-550
Displacement Speed (ℓ/min)	450	850	1500	2500	3000	4000	5000
Ultimate Pressure Torr(Pa) (water temperature 15℃)	17(2.3×10³)	17(2.3×10³)	17(2.3×10³)	17(2.3×10³)	17(2.3×10³)	17(2.3×10³)	17(2.3×10³)
Rotational speed (R.P.M)	3400	1750	1750	1750	1750	1750	1750
Motor (Kw)	1.5(2P)	2.2(4P)	3.7(4P)	5.5(4P)	7.5(4P)	11(4P)	15(4P)
Amount of water supplied (ℓ/min)	6	7	9	10	14	20	30
흡 기 구	25A	40A	40A	40A	40A	50A	50A
배 기 구	25A	40A	40A	40A	40A	50A	50A
Weight (kg)	50	127	157	205	240	326	320

INDEX	HWVP-2-700	HWVP-2-800	HWVP-2-1000	HWVP-2-1200	HWVP-2-2000	HWVP-2-2800
Displacement Speed (ℓ/min)	7000	8000	10000	12000	20000	28000
Ultimate Pressure Torr(Pa) (water temperature 15℃)	17(2.3×10³)	17(2.3×10³)	17(2.3×10³)	17(2.3×10³)	17(2.3×10³)	17(2.3×10³)
Rotational speed (R.P.M)	3400	1750	1750	1750	880	1150
Motor (Kw)	18.5(2P)	22(4P)	30(4P)	37 (4P)	55(6P)	75(4P)
Amount of water supplied (ℓ/min)	34	38	42	60	85	95
흡 기 구	50A	80A	80A	80A	100A	100A
배 기 구	50A	80A	80A	80A	100A	100A
