WOONYOUNG

1/1

WOONYOUNG

Noise Filter 3P-Multi-Stage

Model

Series

Noise Filter

Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Please contact Komachine.

Description

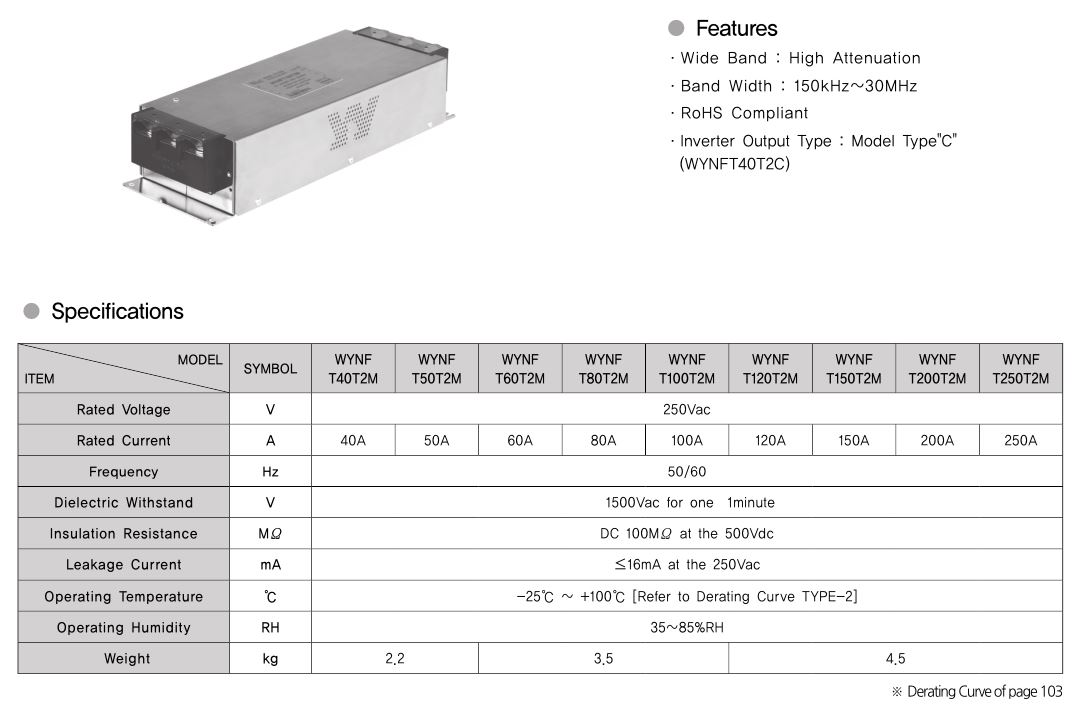

Model No	WYNFT40T2M WYNFT50T2M WYNFT60T2M WYNFT80T2M WYNFT100T2M WYNFT120T2M WYNFT150T2M WYNFT200T2M WYNFT250T2M
TYPE	3Phase AC500V Multi-stage type (New)
Certification
Rating	250VAC
Input	250VAC
Output
Capacity	40A 50A 60A 80A 100A 120A 150A 200A 250A

Specifications and Features

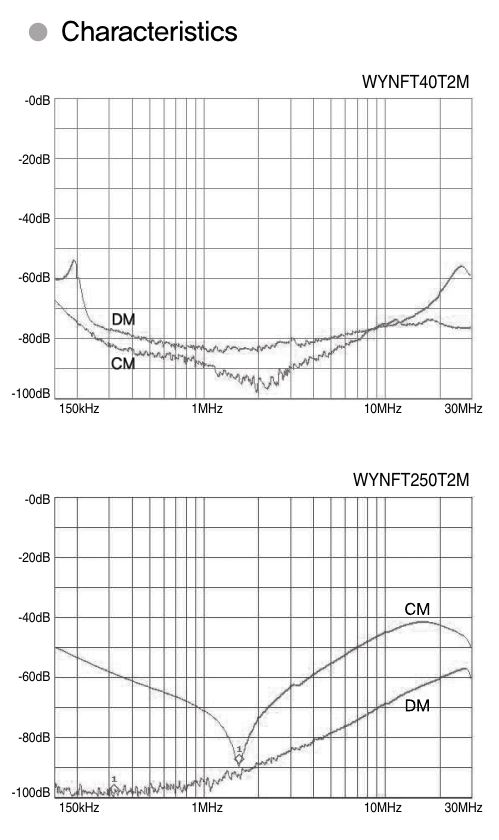

ㆍWide Band : High Attenuation

ㆍBand Width : 150kHz~30MHz

ㆍRoHS Compliant

ㆍInverter Output Type : Model Type"C" (WYNFT40T2C)

Download

WYNFTH60_100T2M1.DWG

WYNFTH120_250T2M0.DWG

WYNFTH40_50T2M3.DWG
