WOONGJIN MACHINERY

WOONGJIN MACHINERY

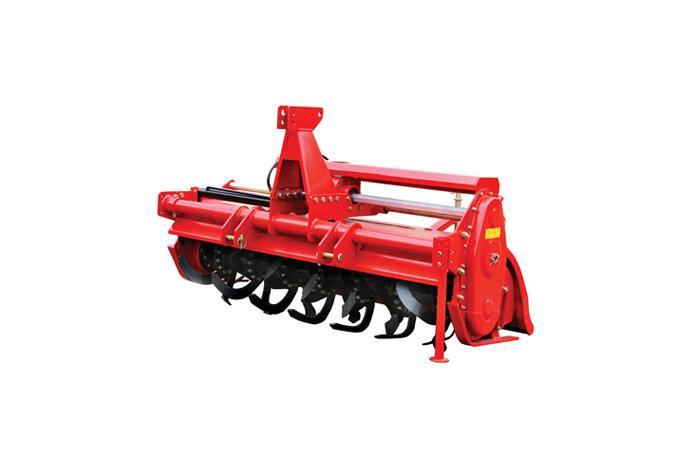

Portable Rotavator

Model

Series

-


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description


In orchards and vinyl houses

- Convenient to use in a vinyl house and an orchard, as it offers hydraulic pressure moving methods.

- Special oil seal in used on tillage axis and migration axis to prevent inflow of foreign substances.

- No frequent breakdown due to powerful side gear operation.

- No bending or breaking since the high-strength migration axis (bar) is firmly fixed.

- The top cover is made of two structures, thus it protects the main frame when working on a gravel field.

Specifications

ModelSize(mm)Tilling Width
(mm)
Required Power
(hp)
Weight
(kg)
Flange QuantityBlade Quantity
LengthWidthHeight
WJ140CM8201,430(Move Width:260)9301,31019~2528086X4=24
2X2=4(28)
WJ150GO9001,670(Move Width:390)1,1001,45025~35350636
WJ165GO9001,810(Move Width:467)1,1001,60035~43365742
WJ175GO9001,900(Move Width:517)1,1001,75043~55440742
