- Wooam Super Polymer Co., Ltd. specializes in the production of PTFE heat exchangers, fluororesin, and engineering plastic components. The company focuses on providing high-quality products essential for precise and ultra-high purity environments in the semiconductor, fine chemical, steelmaking, and metal surface treatment industries. Established on September 3, 1996, the company has gained recognition for its technological excellence both domestically and internationally through continuous R&D and investment.Wooam Super Polymer Co., Ltd. specializes in the production of PTFE heat exchangers, fluororesin, and engineering plastic components. The company focuses on providing high-quality products essential for precise and ultra-high purity environments in the semiconductor, fine chemical, steelmaking, and metal surface treatment industries. Established on September 3, 1996, the company has gained recognition for its technological excellence both domestically and internationally through continuous R&D and investment.
- PTFE Heat Exchanger (SHELL & TUBE TYPE): Applied in fine chemical and semiconductor industries, used in chemical processes of leading domestic and international companies. This PTFE heat exchanger features strong corrosion resistance and a low friction coefficient, used for heating, cooling, and condensing highly corrosive and high-purity liquids.PTFE Heat Exchanger (SHELL & TUBE TYPE): Applied in fine chemical and semiconductor industries, used in chemical processes of leading domestic and international companies. This PTFE heat exchanger features strong corrosion resistance and a low friction coefficient, used for heating, cooling, and condensing highly corrosive and high-purity liquids.
- PTFE Heat Exchanger (MODULAR TYPE): Primarily applied in the steelmaking industry, offering modular design capabilities according to customer specifications. It features a maximum tube diameter of 19mm and provides various connection specifications.PTFE Heat Exchanger (MODULAR TYPE): Primarily applied in the steelmaking industry, offering modular design capabilities according to customer specifications. It features a maximum tube diameter of 19mm and provides various connection specifications.
- WHX WASTE ACID DISPOSAL COOLER: A product designed to lower the temperature of high-temperature chemical waste liquids when discharged to external treatment facilities.WHX WASTE ACID DISPOSAL COOLER: A product designed to lower the temperature of high-temperature chemical waste liquids when discharged to external treatment facilities.
- HOT SULFURIC ACID (150 °C) DISPOSAL COOLER: A cooling device specifically designed for the disposal of hot sulfuric acid at 150°C.HOT SULFURIC ACID (150 °C) DISPOSAL COOLER: A cooling device specifically designed for the disposal of hot sulfuric acid at 150°C.
- DURAHEAT IM In-Line Heater (Models: 2KW, 4KW, 6KW, 12KW, 18KW): Chemical heaters used for temperature elevation in semiconductor cleaning equipment or solar equipment via immersion or indirect methods.DURAHEAT IM In-Line Heater (Models: 2KW, 4KW, 6KW, 12KW, 18KW): Chemical heaters used for temperature elevation in semiconductor cleaning equipment or solar equipment via immersion or indirect methods.
- DURAHEAT ID In-Line Heater (Models: 0.5KW, 3KW, 6KW, 9KW): Provides high-purity and reliable heating/cooling of chemicals for semiconductors. Features a special fusion-welded heater housing that eliminates O-rings and moving parts, allowing only PTFE/PFA contact.DURAHEAT ID In-Line Heater (Models: 0.5KW, 3KW, 6KW, 9KW): Provides high-purity and reliable heating/cooling of chemicals for semiconductors. Features a special fusion-welded heater housing that eliminates O-rings and moving parts, allowing only PTFE/PFA contact.
- DURAHEAT Heat-Cool Unit: Applied in ultra-precision semiconductor and fine chemical industries, capable of simultaneous heating and cooling control. Maintains temperature stability of ±0.3℃ within a temperature range of 15℃ to 80℃.DURAHEAT Heat-Cool Unit: Applied in ultra-precision semiconductor and fine chemical industries, capable of simultaneous heating and cooling control. Maintains temperature stability of ±0.3℃ within a temperature range of 15℃ to 80℃.
- DEGASSER: A degasification module product.DEGASSER: A degasification module product.
- Quick Coupler (Models: QC10A, QC15A, QC20A, QC25A): Couplers for highly corrosive chemical piping and high-purity chemical piping in semiconductors. Made from PCTFE, PP, PTFE materials, available in 3/8″, 1/2″, 3/4″, 1″ sizes, with various O-ring material options depending on the fluid used.Quick Coupler (Models: QC10A, QC15A, QC20A, QC25A): Couplers for highly corrosive chemical piping and high-purity chemical piping in semiconductors. Made from PCTFE, PP, PTFE materials, available in 3/8″, 1/2″, 3/4″, 1″ sizes, with various O-ring material options depending on the fluid used.
- PFA Beadless Tube: A PFA tube product whose quality is verified through Burst Test, Elution Test (98% H2SO4), and ICP-MS TEST.PFA Beadless Tube: A PFA tube product whose quality is verified through Burst Test, Elution Test (98% H2SO4), and ICP-MS TEST.

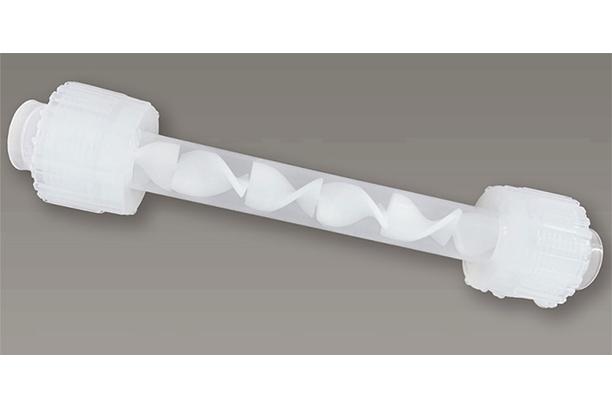

- Static Mixer (Models: ST-MI-TW-1, ST-MI-TW-2, ST-MI-TW-3): A range of static mixer products applicable in various industrial fields.Static Mixer (Models: ST-MI-TW-1, ST-MI-TW-2, ST-MI-TW-3): A range of static mixer products applicable in various industrial fields.
- Specialized Production Capability for Fluororesin and Engineering Plastic Components: The company aims to be a leader in the industry through specialized production of PTFE heat exchangers, fluororesin, and engineering plastic components. A strong advantage in providing differentiated high-quality products for industries requiring precise and ultra-high purity environments.Specialized Production Capability for Fluororesin and Engineering Plastic Components: The company aims to be a leader in the industry through specialized production of PTFE heat exchangers, fluororesin, and engineering plastic components. A strong advantage in providing differentiated high-quality products for industries requiring precise and ultra-high purity environments.
- Proprietary PTFE Fusion Welding Technology and Patents: Technical expertise in producing heat exchangers, chemical heaters, and tanks through PTFE molding, fusion, and processing patents. The PTFE fusion welding technology specifically improves the processability issues of conventional PTFE and successfully minimizes leakage at the heat exchanger head (connection part between tube and resin material).Proprietary PTFE Fusion Welding Technology and Patents: Technical expertise in producing heat exchangers, chemical heaters, and tanks through PTFE molding, fusion, and processing patents. The PTFE fusion welding technology specifically improves the processability issues of conventional PTFE and successfully minimizes leakage at the heat exchanger head (connection part between tube and resin material).
- Products with High Chemical Resistance and Durability: Utilizes PTFE tubes instead of commonly used PFA tubes, resulting in superior chemical resistance and products that do not harden or crumble. Minimal fouling from scale and slime, leading to reduced maintenance costs, and high flexibility with over 1,000,000 Flex Life cycles, strong against hammering.Products with High Chemical Resistance and Durability: Utilizes PTFE tubes instead of commonly used PFA tubes, resulting in superior chemical resistance and products that do not harden or crumble. Minimal fouling from scale and slime, leading to reduced maintenance costs, and high flexibility with over 1,000,000 Flex Life cycles, strong against hammering.
- Innovative Heat Exchanger Design Technology: The 20-inch Honeycomb Head for PTFE heat exchangers, developed in 2011, is large-diameter, capable of covering the capacity of two conventional heat exchangers with a single unit. Facilitates application in confined spaces and large-capacity types, ensuring a competitive edge in pricing due to increased capacity.Innovative Heat Exchanger Design Technology: The 20-inch Honeycomb Head for PTFE heat exchangers, developed in 2011, is large-diameter, capable of covering the capacity of two conventional heat exchangers with a single unit. Facilitates application in confined spaces and large-capacity types, ensuring a competitive edge in pricing due to increased capacity.
- Number 1 Market Share in Domestic Market and Expanding Overseas Presence: Holds the top market share in the domestic Teflon heat exchanger market and is actively expanding its overseas presence through international agencies to China, Taiwan, Japan, and the United States. Actively exploring overseas markets, including a new supply contract with Japan's D company.Number 1 Market Share in Domestic Market and Expanding Overseas Presence: Holds the top market share in the domestic Teflon heat exchanger market and is actively expanding its overseas presence through international agencies to China, Taiwan, Japan, and the United States. Actively exploring overseas markets, including a new supply contract with Japan's D company.
- Ability to Provide Customized Customer Solutions: Offers PTFE Heat Exchanger (MODULAR TYPE) with modular design capabilities according to customer specifications and various connection options. Committed to customer satisfaction, focusing on meeting the standard and application product requirements of its clients.Ability to Provide Customized Customer Solutions: Offers PTFE Heat Exchanger (MODULAR TYPE) with modular design capabilities according to customer specifications and various connection options. Committed to customer satisfaction, focusing on meeting the standard and application product requirements of its clients.
- Semiconductor Industry: Applied in heat exchangers, chemical heaters, degasification modules, etc., for semiconductor manufacturing processes requiring precise and ultra-high purity environments. Plays a critical role in heating chemicals and cooling waste liquids in semiconductor cleaning equipment.Semiconductor Industry: Applied in heat exchangers, chemical heaters, degasification modules, etc., for semiconductor manufacturing processes requiring precise and ultra-high purity environments. Plays a critical role in heating chemicals and cooling waste liquids in semiconductor cleaning equipment.
- Fine Chemical Industry: Utilized in PTFE heat exchangers and quick couplers for processing highly corrosive chemicals and heating/cooling high-purity liquids.Fine Chemical Industry: Utilized in PTFE heat exchangers and quick couplers for processing highly corrosive chemicals and heating/cooling high-purity liquids.
- Steelmaking Industry: Supplies PTFE Heat Exchanger (MODULAR TYPE) and other fluororesin components for the steelmaking industry, including pickling processes, where corrosion resistance is required.Steelmaking Industry: Supplies PTFE Heat Exchanger (MODULAR TYPE) and other fluororesin components for the steelmaking industry, including pickling processes, where corrosion resistance is required.
- Metal Surface Treatment Industry: Product application in metal surface treatment processes requiring corrosion and chemical resistance.Metal Surface Treatment Industry: Product application in metal surface treatment processes requiring corrosion and chemical resistance.
- Solar Industry: Product application in chemical heaters for temperature elevation in solar equipment.Solar Industry: Product application in chemical heaters for temperature elevation in solar equipment.
- China, Taiwan, JapanChina, Taiwan, Japan
- United StatesUnited States
- Development of fusion welding method for fluororesin molded products (1994).Development of fusion welding method for fluororesin molded products (1994).
- Bubbler and Making Method (Patent# 1997-0024079): Holds a patent for the method of manufacturing a bubble generator and its product.Bubbler and Making Method (Patent# 1997-0024079): Holds a patent for the method of manufacturing a bubble generator and its product.
- Apparatus for Manufacturing the Convection Member and Method of Manufacturing the Apparatus (Patent# 1999-0010765): Holds a patent for the apparatus for manufacturing a convection member for heat exchangers and its manufacturing method.Apparatus for Manufacturing the Convection Member and Method of Manufacturing the Apparatus (Patent# 1999-0010765): Holds a patent for the apparatus for manufacturing a convection member for heat exchangers and its manufacturing method.
- Adhesion Method of PTFE things (Patent# 2001-0035877): Holds a patent for the adhesion method of molded articles made of polytetrafluoroethylene.Adhesion Method of PTFE things (Patent# 2001-0035877): Holds a patent for the adhesion method of molded articles made of polytetrafluoroethylene.
- IN-LINE Heater of Etching and Cleaning Solution for Semiconductor Wafer patent holder.IN-LINE Heater of Etching and Cleaning Solution for Semiconductor Wafer patent holder.
- Acquisition of patent for the molding method of PTFE containers and its apparatus (1998).Acquisition of patent for the molding method of PTFE containers and its apparatus (1998).
- Holds a total of 8 patents in the field of fluororesin molding and new material semiconductor component production.Holds a total of 8 patents in the field of fluororesin molding and new material semiconductor component production.
