Wonchang Machinery

Wonchang Machinery

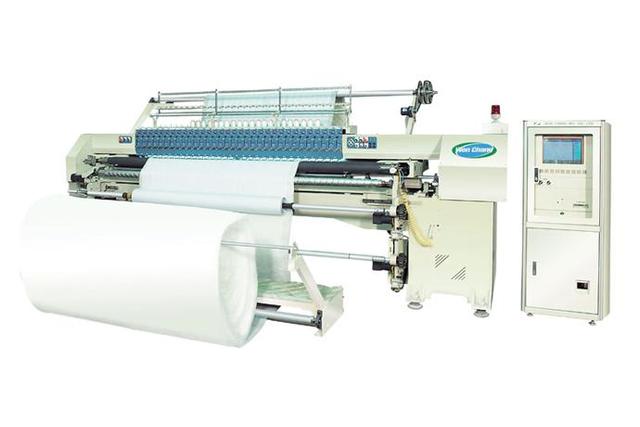

Computerized Chain Stitch Quilter

Model

Series

Products


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

Features

* By using cone-type thread instead of shuttle-type as bottom yarn. lt is capable of working continuousely.
* Maximum working speed is to be increased to 850rpm & it elevates the producti-vity.
* Various kind of thick products which are made of sponges like mattress for bed are also available.
* By 14" color monitor. Shows information on current process graphically.
 (e.g., sititches number, coordinate value, etc.)
* For parameter storage of patterns, each disk can hold approximately 210,000 stitches.
* M/C stops automatically and details for the causes of stop are displayed on the CRT screen whenever it happens abnormalities on computer, servo-motor and or mainbody of M/C.



Functions

* Memory back up
11Saves machine memory in case of power failure, and preserves pattern when machine power is turned off.
* Scaling, Image
11Enlarges or reduces the size of design vertically or horizontally, independently from 50% to 200% by 1%.
* Editing
11Corrects defective design or enhances existing design without repunching. The color CRT monitor allows you to edit quickly and accurately.
* Error detection display
11Error massages are displayed on the monitor until the condition corrected.



Technical Specifications

Control Type 2-Axis Simultaneous Control,
Linear/arc Interpolation
Motor AC Servo Motor
Stitch Double Lock Chain Stitch



Stitch Length 0.1 ~ 6.0 mm
Speed 150 ~ 850 RPM
Power Source AC220V 3Phase 50/60Hz
AC380V 3Phase 50/60Hz



Dimensions

Model Working width Needle
rows
Carriage
stroke
Dimensions (mm)
Width Length Height
WCM 94C 94"(238cm)

2 or
3BAR
5~6inch

12"
(30cm)
1,800 4,800 1,900



 Sanlpe & Design Pattern

Wonchang Machinery Computerized Chain Stitch Quilter WCM-C
