Wonchang Machinery

Wonchang Machinery

Standard Quilting High Speed Quilter

Model

Series

Products


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

Uses

* Fashionable patterns can be quilted in various types of bedding.
* A thick bed quilt, sponge and leather products can also be handled. (15mm)

Various Option

* The size of machine can be changed for your purpose.
* Compare to the previous No.7, No.10 machine, shuttle function improve producti-vity and variety to feel the superiority.
* Sponge product is order specification.
* Thread detector & needle upper position stop system. (Option)

Sanlpe & Design Pattern

11The machine has been invented as a result of several years research by our technical staffs.
11So, "A" Type machine is famous for its high efficiency, easy handling and firmness for clothes, bedding, industrial use and interior decoration, etc.

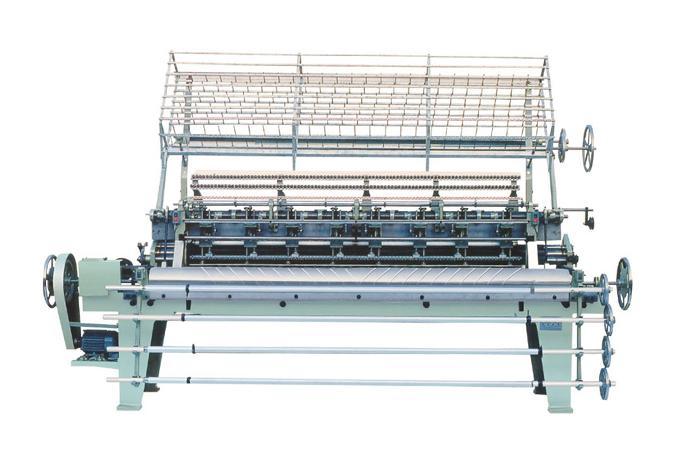

Wonchang Machinery Standard Quilting High Speed Quilter KW-A


Technical Specifications

Control Type CAM Type
Motor AC Induction Motor
Type of Stitch Shuttle Type
Shuttle No. 7, No. 10



Needle EB #16 ~ #21
Speed 400 ~ 550RPM
Power Supply AC 220V 3Phase 50/60Hz
AC 380V 3Phase 50/60Hz
Power Consumption 1.5Kw ~ 2.2Kw



Dimensions

Model Working Width Needles
(1"PITCH)
Needle
Rows
Carriage
Stroke
Demention (mm)
Width Length Height
KW 47A 47"(119cm) 94 2BAR
3inch
3" 1,750 2,780 1,900
KW 64A 64"(162cm) 128 3,260
KW 94A 94"(238cm) 188 4,130
KW 118A 118"(299cm) 236 4,89



Standard Accessory

Model Shuttle Shuttle
Holder
Needle Crooked
Hook
Tools Design
Cam
KW 47A Right 120pcs Right 60pcs 200EA 100EA 1Set 2EA
Left 56pcs Left 28pcs
KW 64A Right 160pcs Right 80pcs 200EA
Left 70pcs Left 35pcs
KW 94A Right 240pcs Right 120pcs 400EA
Left 100pcs Left 50pcs
KW 118A Right 280pcs Right 140pcs 500EA
Left 130pcs Left 65pcs
