Wonchang Machinery

Wonchang Machinery

Computerized Quilting Machine

Model

Series

Products


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

The Latest Computerized Won-Chang's Quilting Machine With Ease-to-use Operation Enables You Versatile Applications

Uses

11Quilting machine, numerically controlled by computer, can produce geometric, linear and circular patterns which conventional cam style machine never do.
11Therefore, you can produce wear, car-sheet, working clothes, table-sheet, etc.

Features

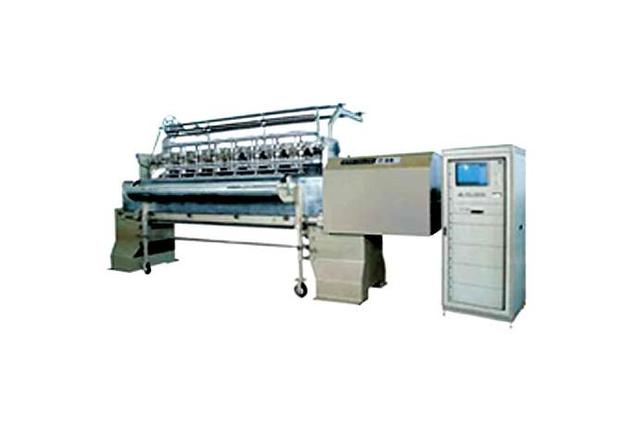

* 14" Color CRT Monitor
11By color monitor, Shows information on current process graphically and status message(e.g., stitches number, coordinate value, etc.)
* Built-in Hard Disk Drive
11For parameter storage of patterns, each disk can hole approximatelu 210,000 stitches.
* Large Memory
11Stores up to 174,000 stitches, expandable to 696,000 stitches.

Functions

* Memory Backup
11Saves machine memory in case of power failure, and preserves pattern when machine power is turned off.
* Scaling, Image
11Enlarges or reduces the size of design verically or horizontally, independently from 50% to 200% by 1%.
* Editing
11Corrects defective design or enhances existing design without repunching. The color CRT monitor allows you to edit quickly and accurately.
* Safety Device
11M/C stops automatically and details for the causes of stop are displayed on the CRT screen whenever It happen abnormalities on computer, servo-motor and or mainbody of M/C.
* Error detection display
11Error massages are displayed on the monitor until the condition corrected.



Technical Specifications

Control Type NC Simultaneous 2-Axis Control,
Linear/arc Interpolation
Motor AC Servo Motor
Type of Stitch Shuttle Type
Shuttle No. 7, No. 10



Stitch Length 0.1 ~ 6.0 mm
Needle EB #16 ~ #21
Speed 150 ~ 600 RPM
Power Supply AC220V 3Phase 50/60Hz
AC380V 3Phase 50/60Hz
Power Consumption 7.5Kw



Dimensions

Model Working Width Needles
(1"PITCH)
Needle Rows Carriage Stroke Dimensions (mm)
Width Length Height
KW 64C 64"(162cm) 128

2 or
3BAR
3inch

12"
(30cm)
1,800 4,060 1,900
KW 94C 94"(238cm) 188 4,800
KW 118C 118"(299cm) 236 5,430



Standard Accessory

Model Shuttles Shuttle
Holder
Needles Crooked
Hook
Tooles Design
KW 64C Right 160pcs Right 80pcs 200EA 100EA 1Set 100EA
Left 70pcs Left 35pcs
KW 94C Right 240pcs Right 120pcs 400EA
Left 100pcs Left 50pcs
KW 118C Right 280pcs Right 140pcs 500EA
Left 130pcs Left 65pcs



Sanlpe & Design Pattern

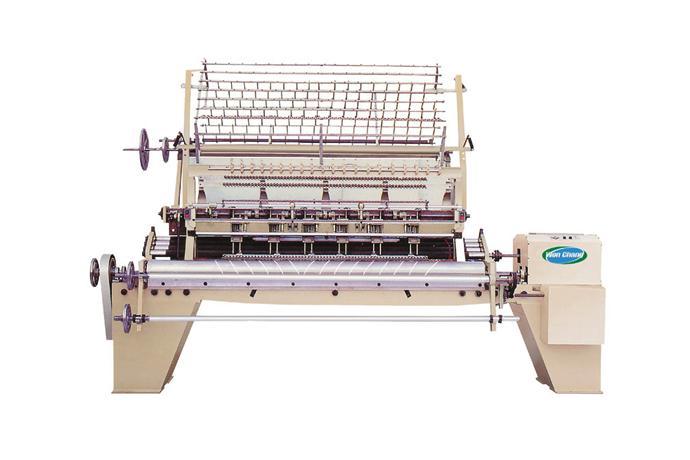

Wonchang Machinery Computerized Quilting Machine KW-C
